Peitian Robot has independently developed a variety of process function packages
They can perfectly meet the operational requirements for grinding, handling, stacking, arc welding, bending and other processes.
Able to achieve higher production efficiency.

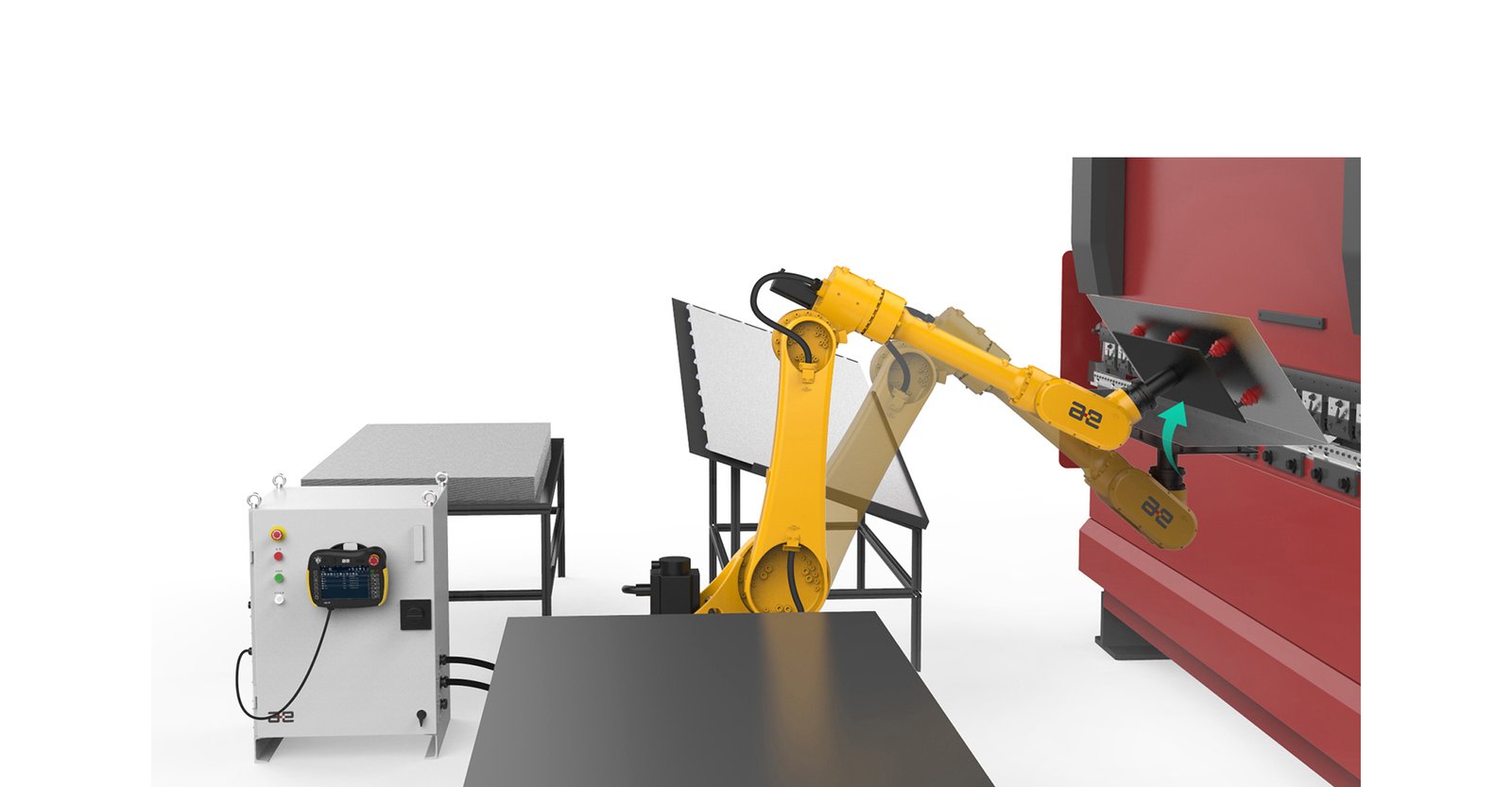

The robot can adjust the follow-up angle and displacement in real time by judging the grating scale or encoder data corresponding to the pressing displacement of the bending machine slider to achieve synchronization with the bent sheet metal, greatly improving the quality and efficiency of bending.

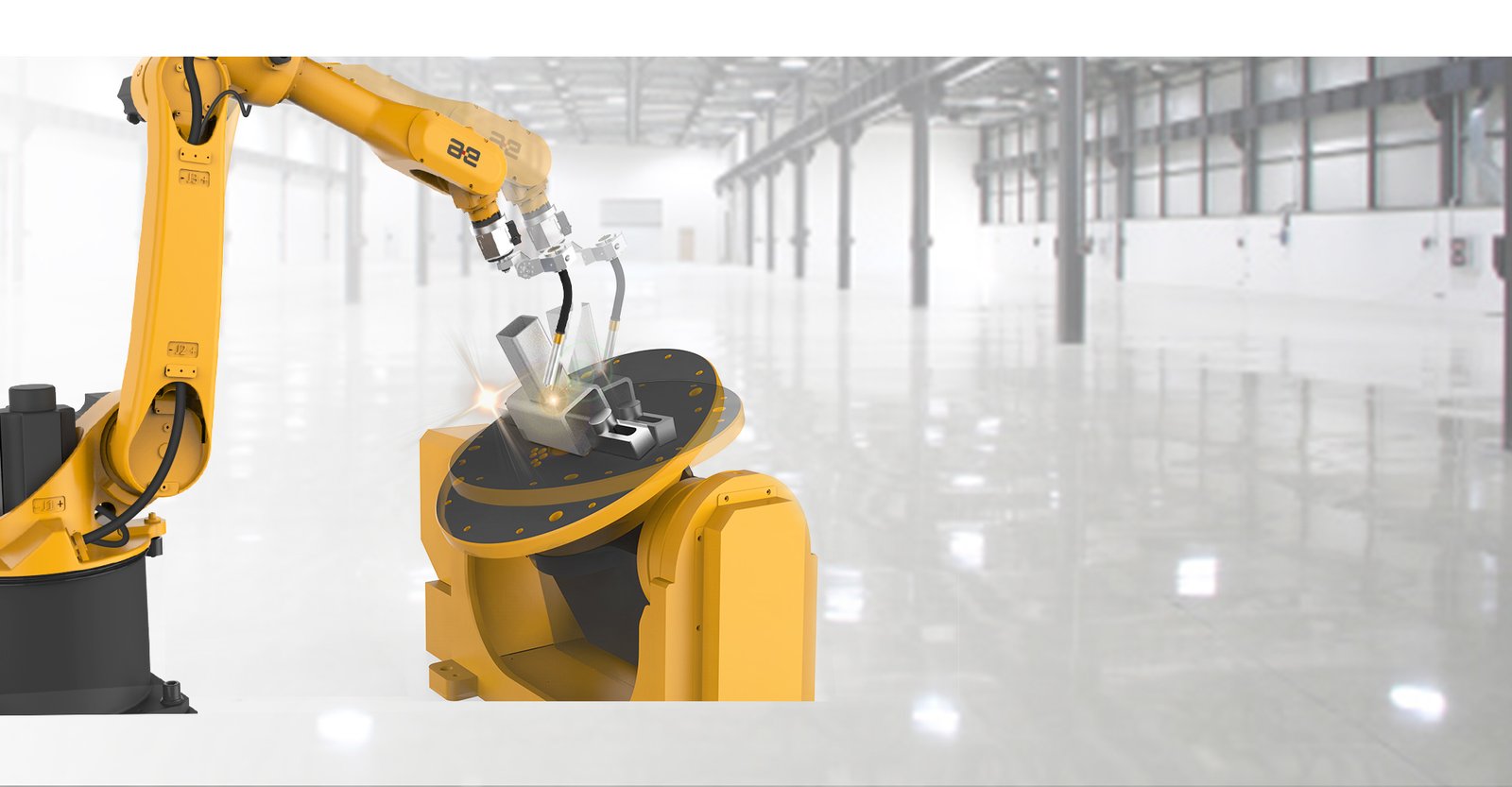

External multi-axis linkage control function
It can realize linkage welding with multi-positioner and multi-robot.

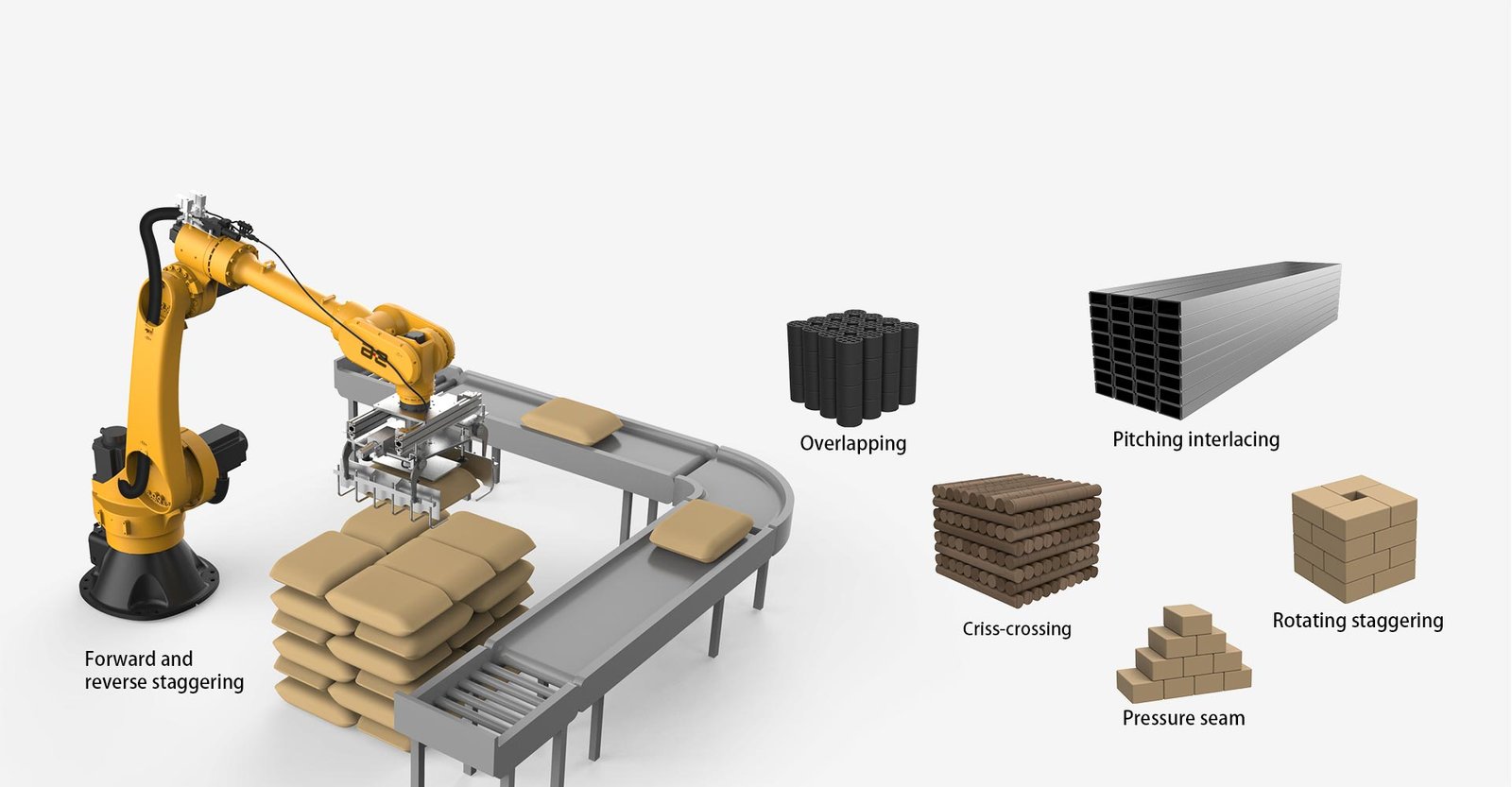

Palletizing Function package
It supports a variety of stacking types such as overlapping, pressure seam, criss-crossing, forward and reverse staggering, rotating staggering, etc.
Welding process function package

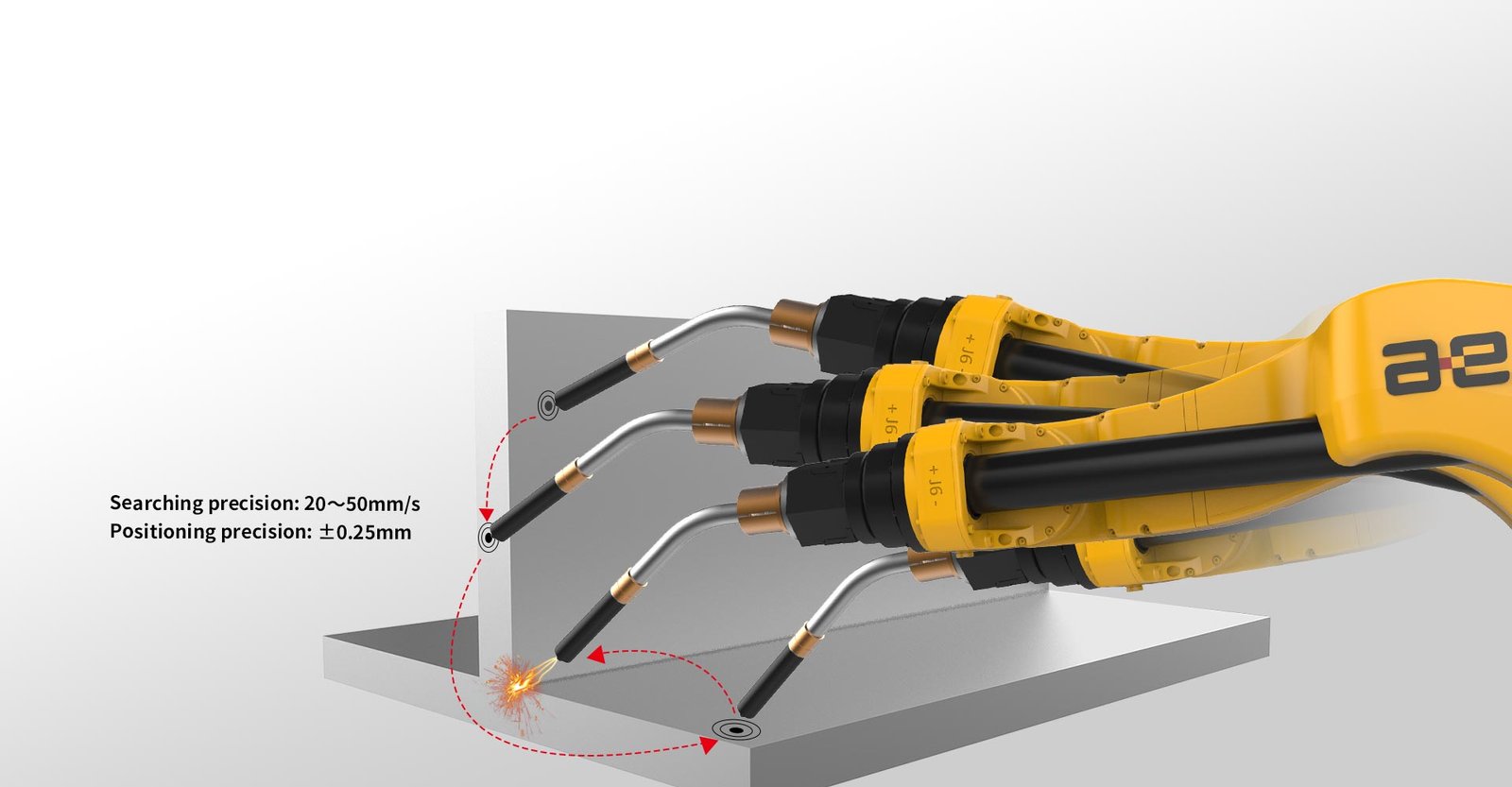

Low voltage Locating function
Use low voltage to determine the starting point，intermediate point and ending point of straight and curved welds
Welding process function package

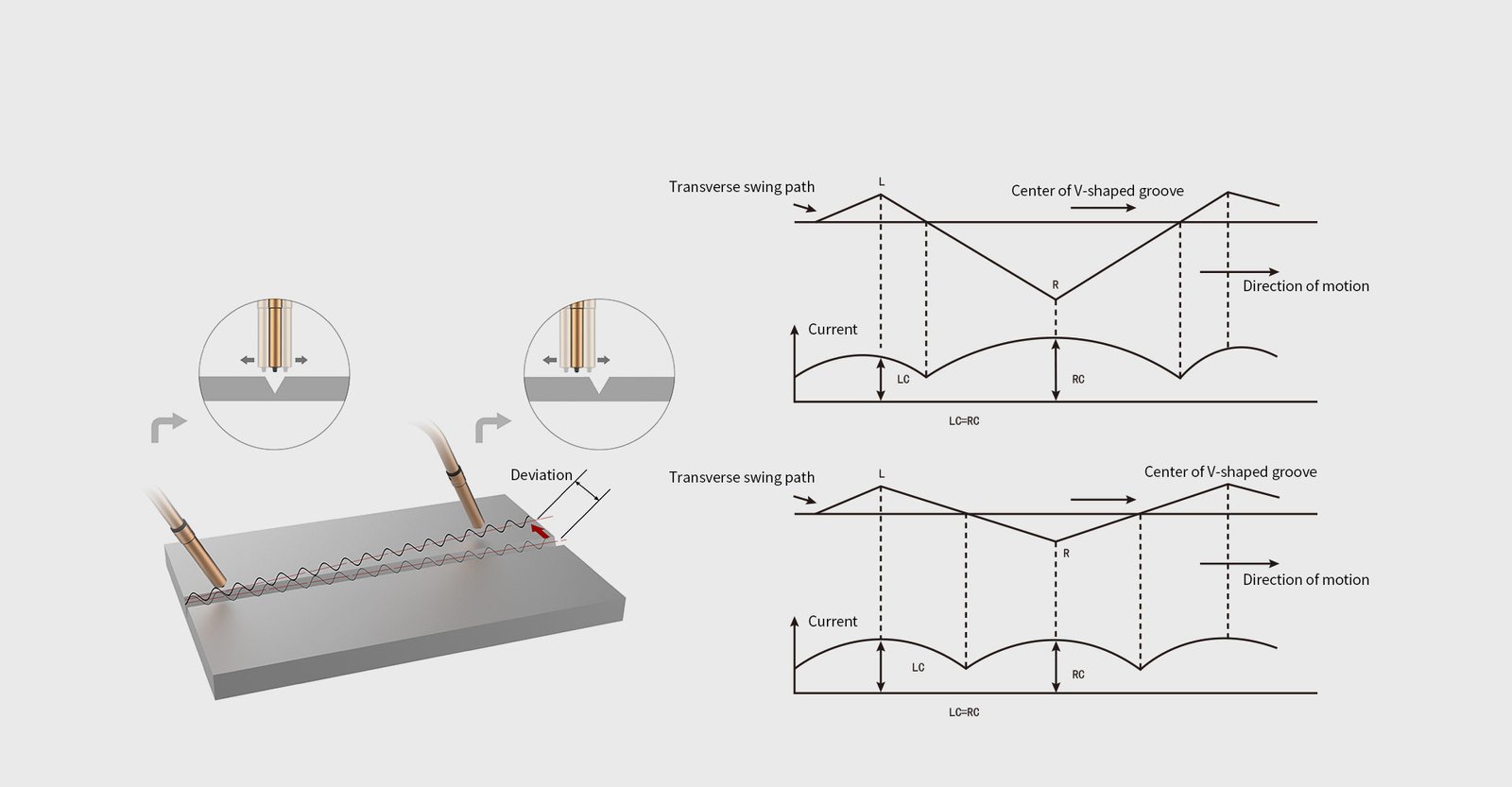

Swing arc weld tracking function
The welding torch is in sinusoidal swing motion, and the arc is used to detect the change of trajectory and to compensate up-down-left-right deviation.

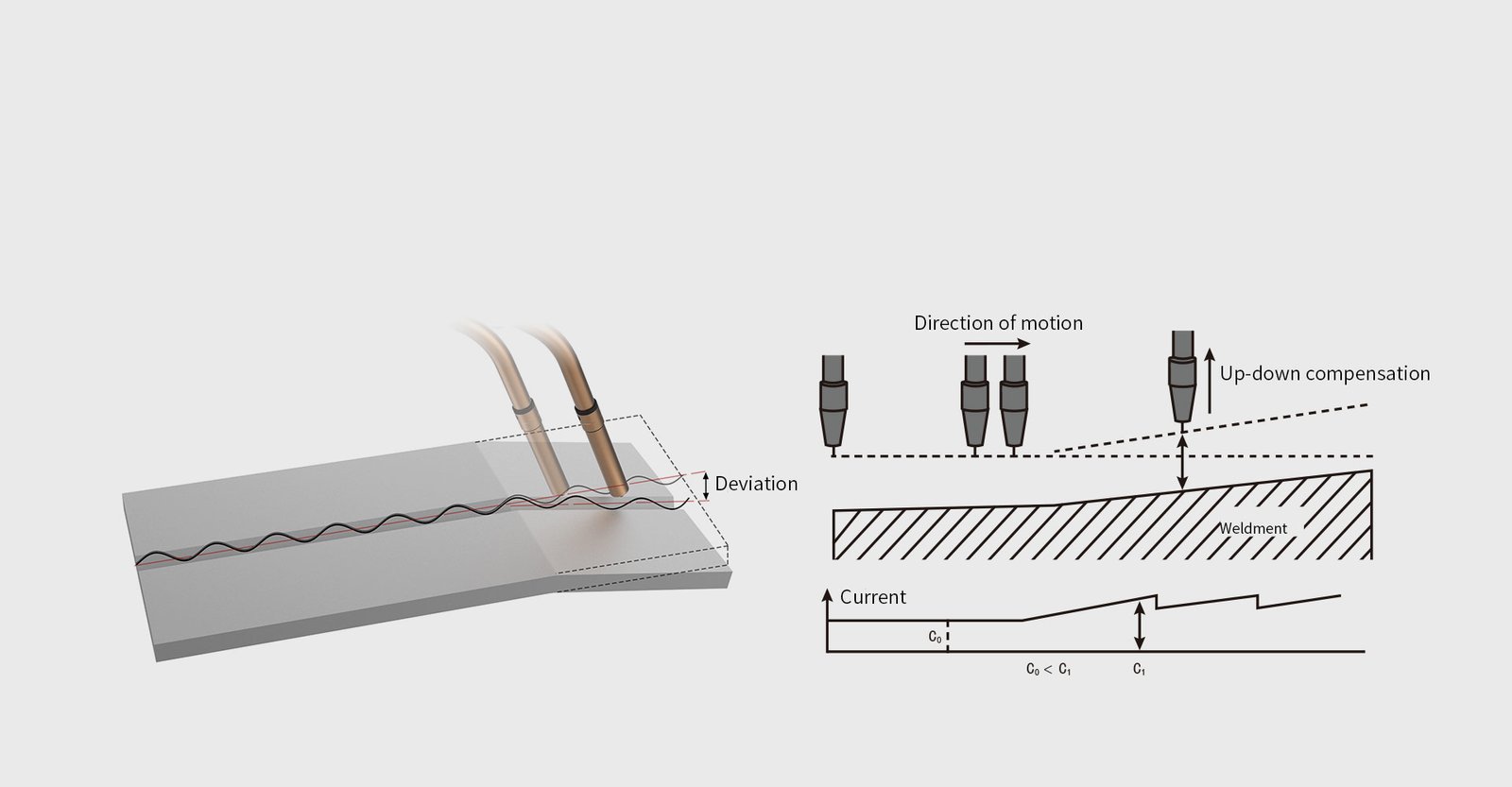

Swing arc weld tracking function
left-right compensation
Welding process function package

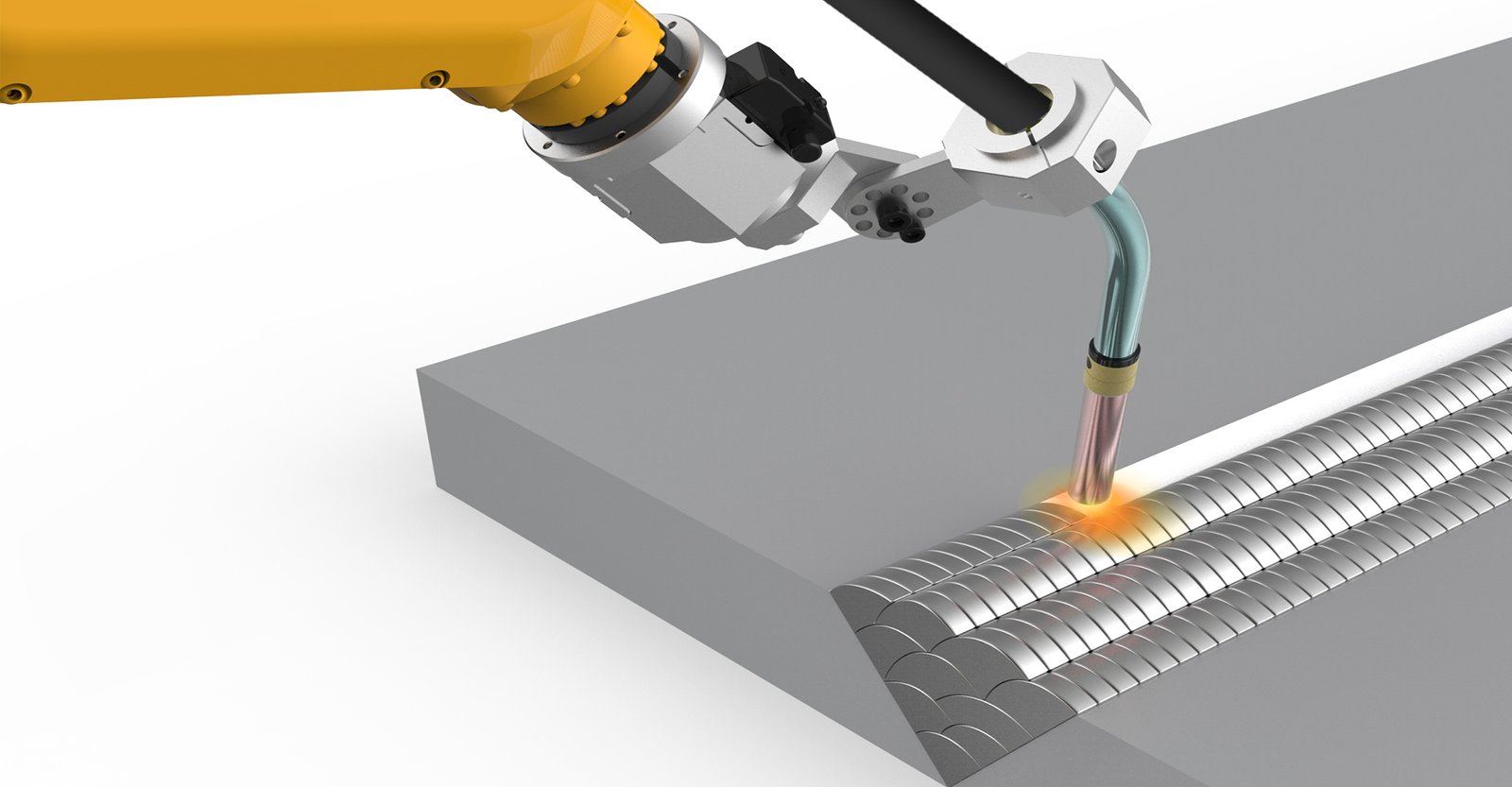

Multi-layer and Multi-pass Welding
When welding thick plates of 20mm or more, it can quickly arrange the welding sequence of the weld bead.
Grinding process function package

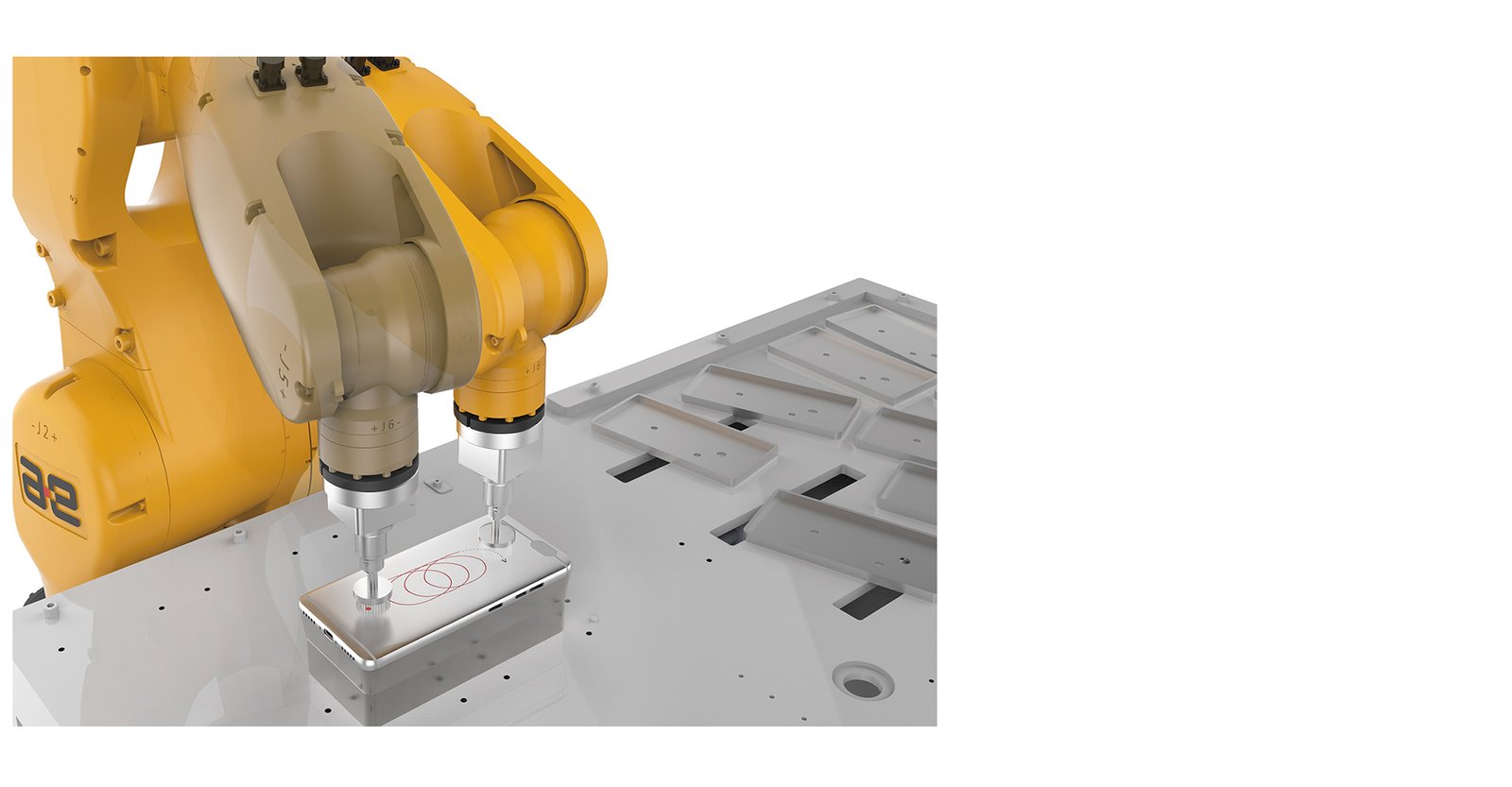

Spiral-line interpolation function
Through the setting of parameters such as the number of rotations, direction, pitch and speed, the teaching of spiral trajectory can be easily completed.
It saves more than 40% of the teaching programming time, widely used in the grinding of electronics casings.
Grinding process function package

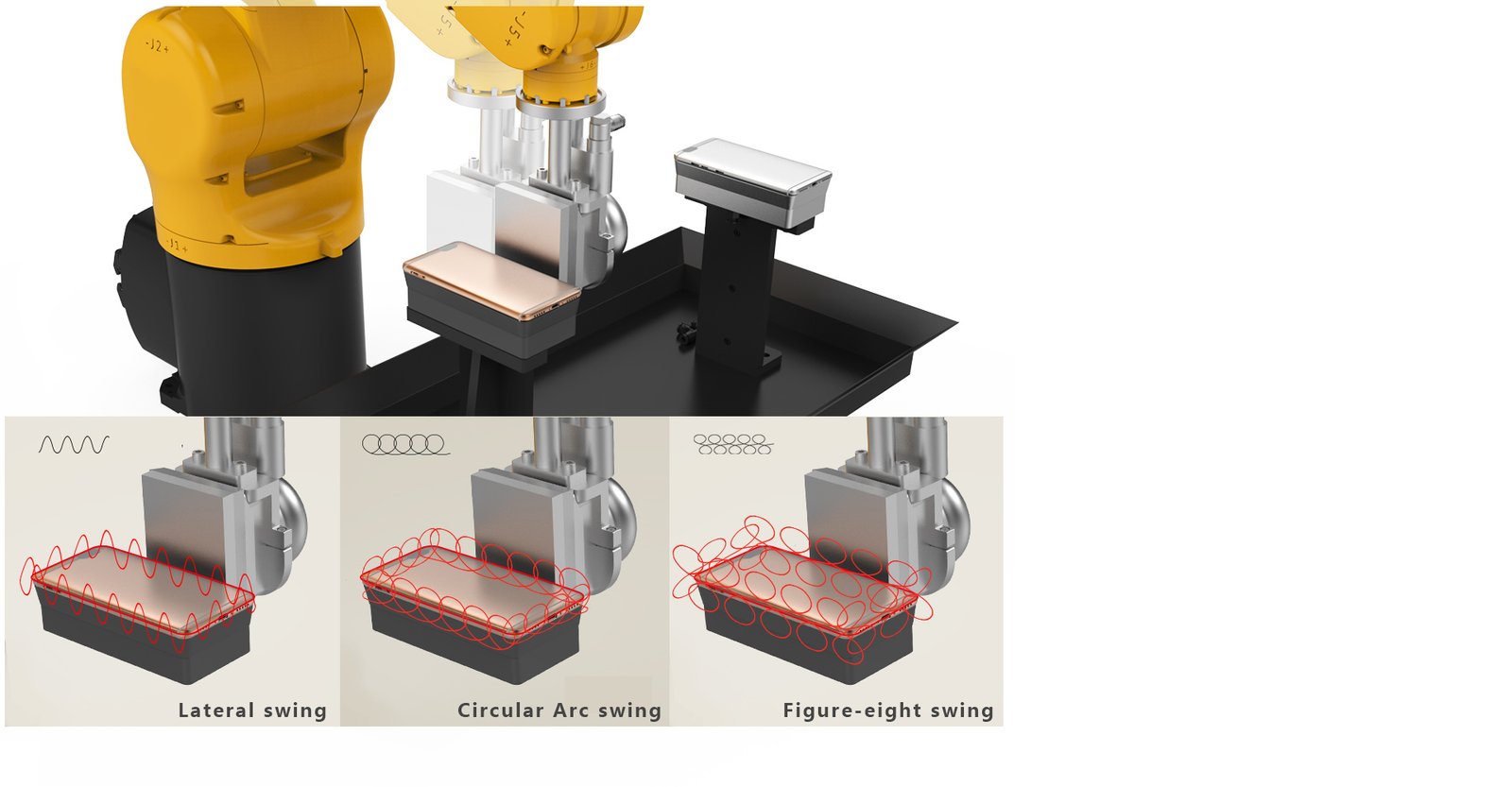

A variety of swing tracks function.
A wealth of swing functions to meet the needs of grinding and arc welding.

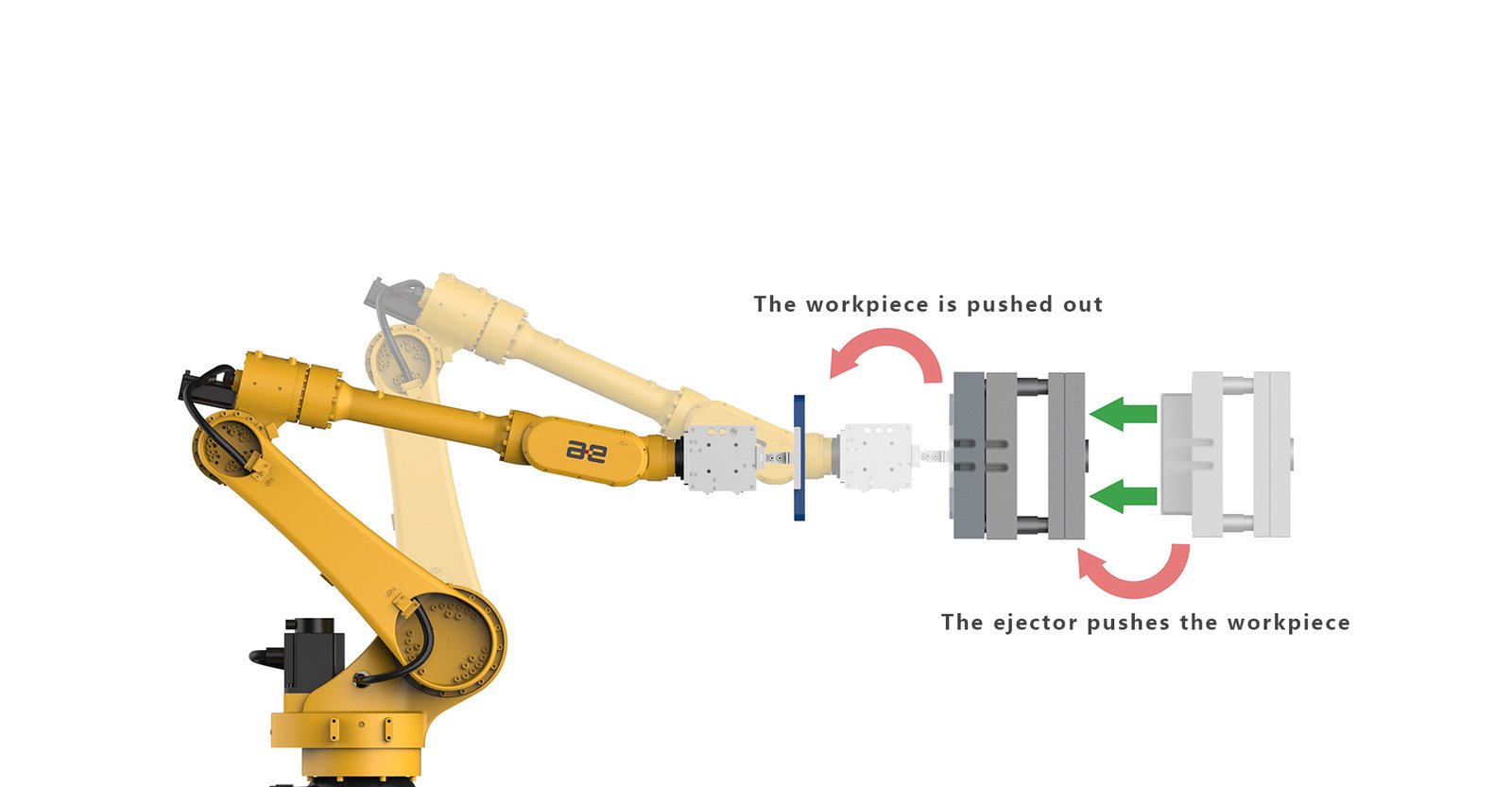

Soft-floating function package for Unloading in Die Casting
It can realize the external force traction floating function in single or multiple directions simultaneously.
