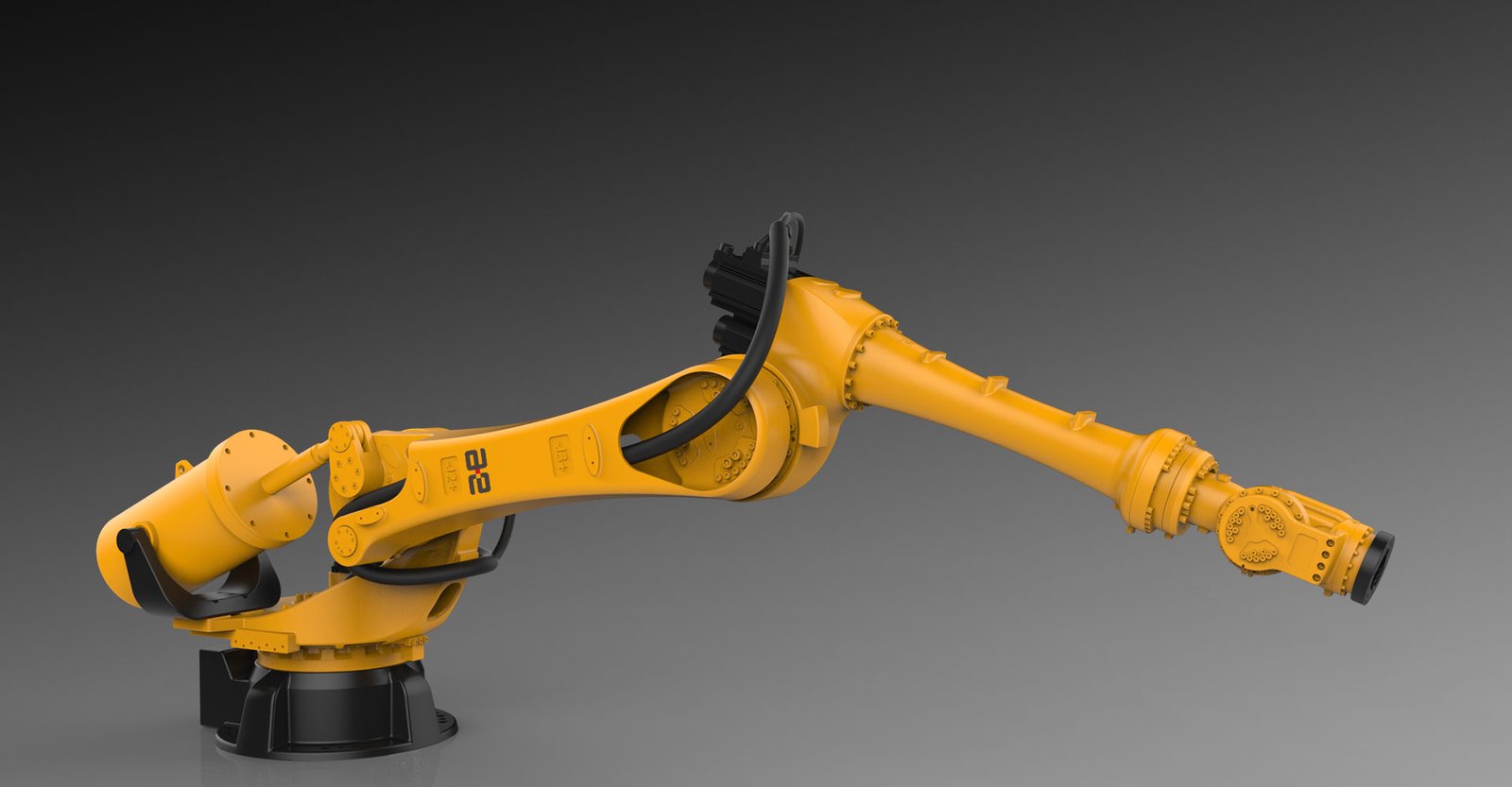

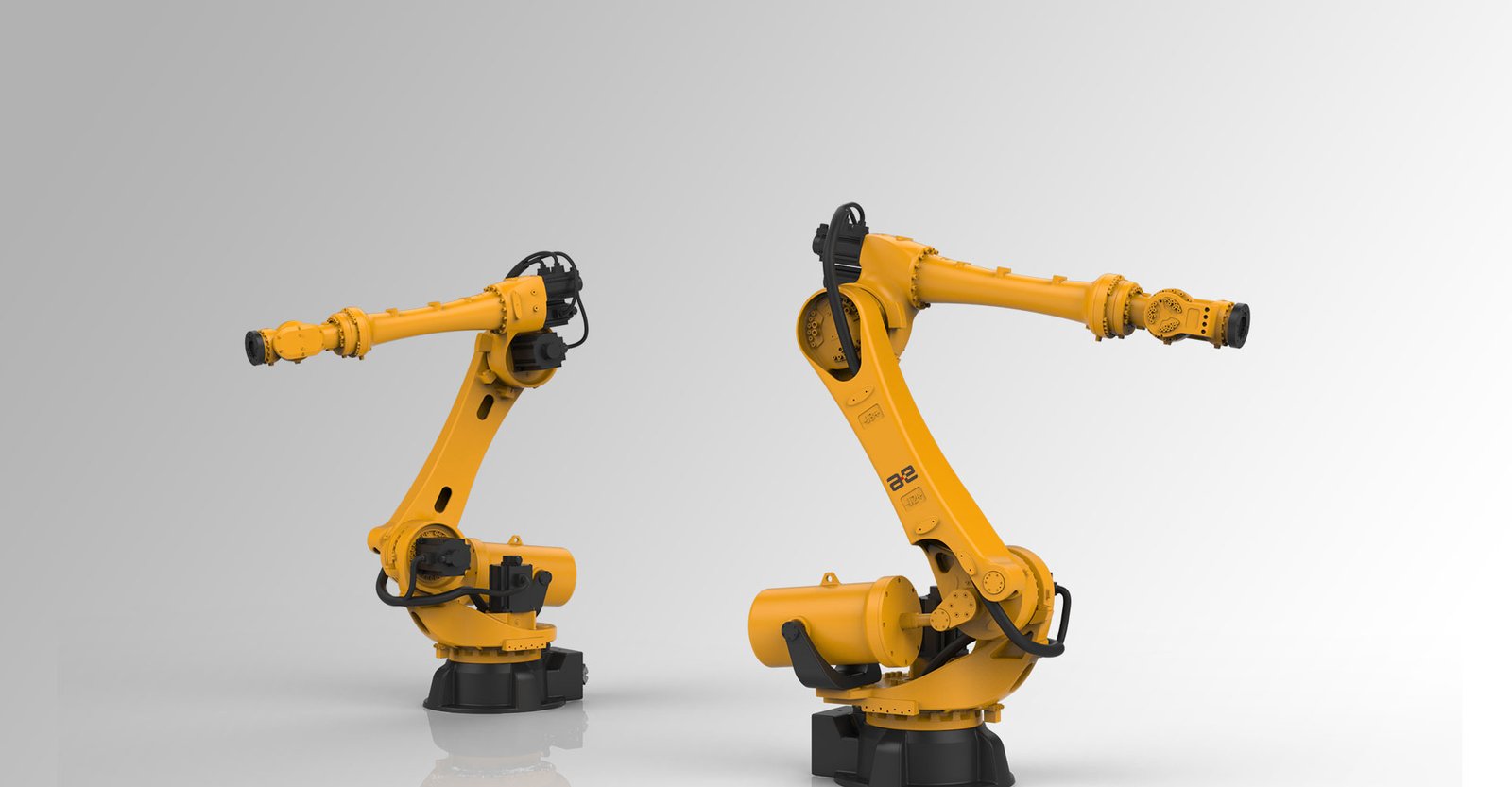

AIR165-2700 - Large Payload

AIR165-2750 is capable of rapid movement over a short distance

while continuous spot welding, achieving 50mm displacement within 0.5s.

Maximum reach up to 2700mm.

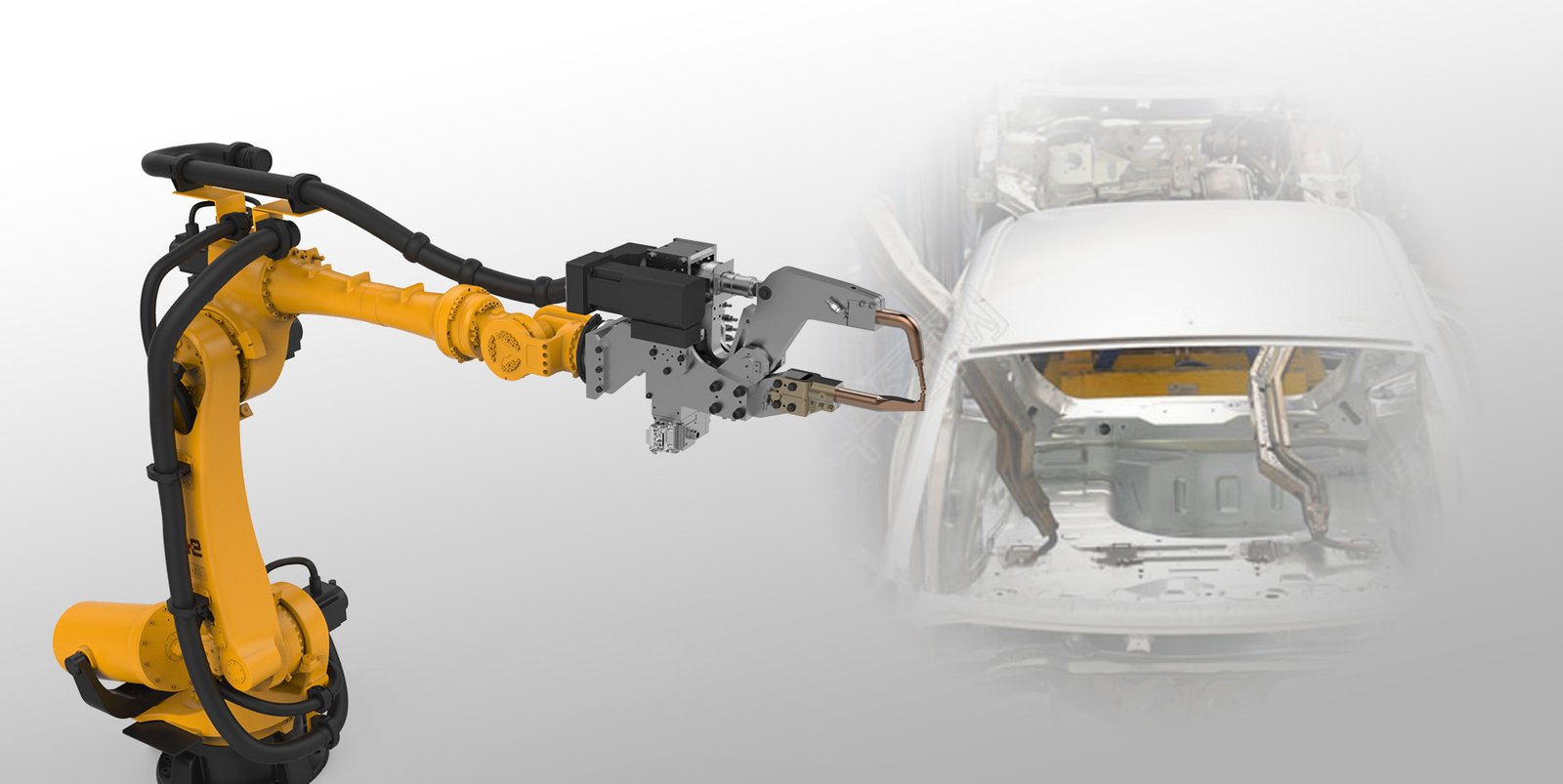

The slim wrist is very suitable for spot welding in the body in white.

High rigidity, lightweight body.

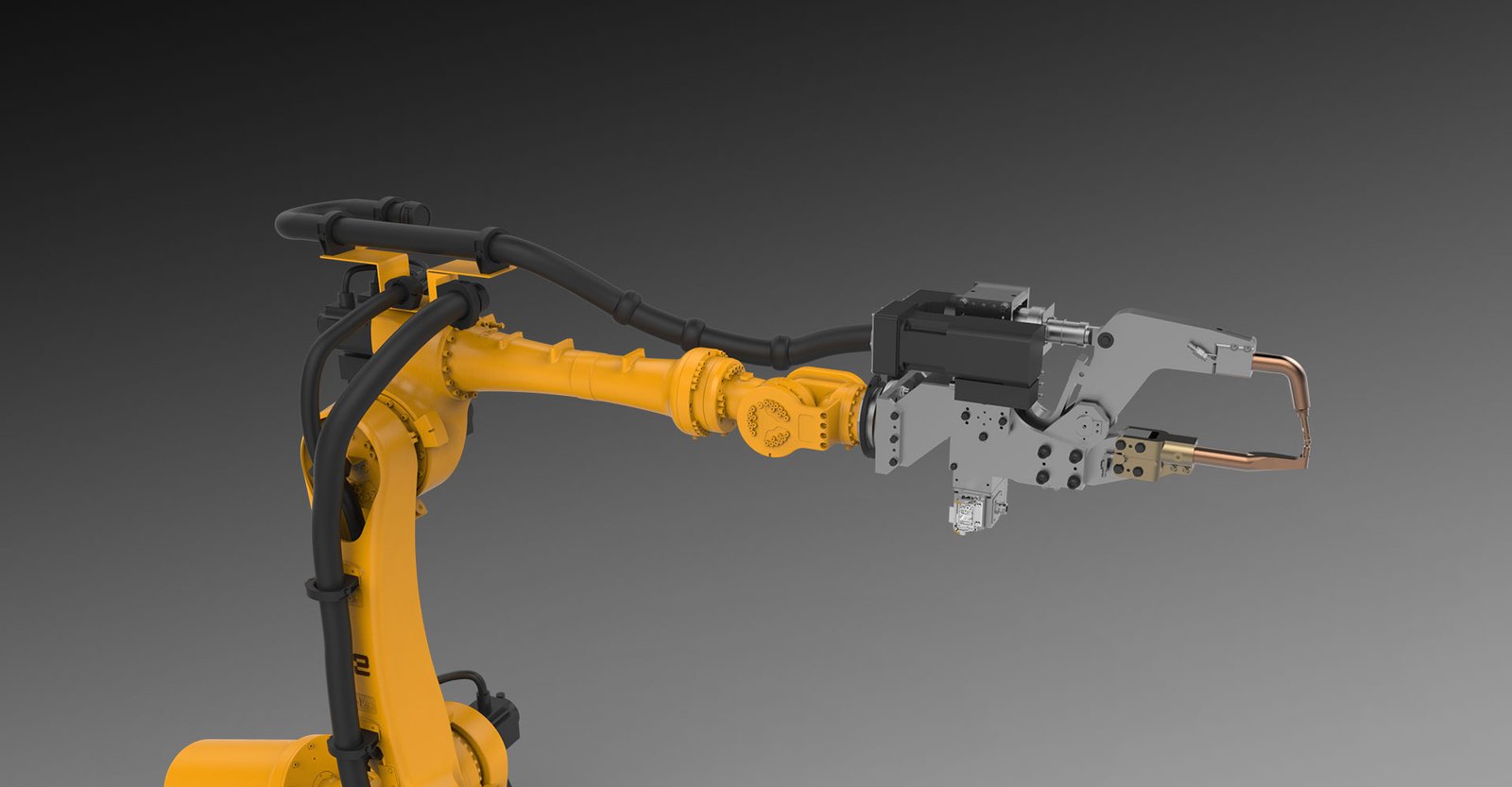

Equipped with dress package, ensuring the welding cable and hose (water/gas) closely attached to the robot body

effectively reducing interference, cable wear and splashing damage, very suitable for automobile spot welding with high complexity.

型号 Type	AIR165-2700
轴数 Axes		6
负载 Payload		165kg
机器人本体 Manipulator	重量 Weight	1200kg
机器人本体 Manipulator	最大运动范围 Reach	2700mm
定位精度 Positioning accuracy	位置重复定位精度 Position repeatability	± 0.1mm
IP等级 Ingress Protection		IP54 ( 小臂：IP65 ) ( Forearm：IP65 )
安装方式 Mounting		地装 Floor
运动范围 Working range	轴1 Axis 1	-180°/+180°
	轴2 Axis 2	-65°/+85°
	轴3 Axis 3	-110°/+155°
	轴4 Axis 4	-360°/+360°
	轴5 Axis 5	-123°/+123°
	轴6 Axis 6	-360°/+360°
运动速度 Rotation rate	轴1 Axis 1	125°/s
	轴2 Axis 2	113°/s
	轴3 Axis 3	125°/s
	轴4 Axis 4	180°/s
	轴5 Axis 5	175°/s
	轴6 Axis 6	280°/s
适用控制柜 Controllers		ARC5-280
