| Type | AIR7-920 | ||
| Axes | 6 | ||
| Payload | 7kg | ||
| Manipulator | Reach | 920mm | |
| Positioning accuracy | Position repeatability | ±0.02mm | |
| Ingress Protection | IP67 | ||
| Mounting | Floor/Wall/Ceiling | ||
| Working range | Axis 1 rotation | -170°/+170° | |
| Axis 2 arm | -100°/+135° | ||
| Axis 3 arm | -120°/+156° | ||
| Axis 4 wrist | -200°/+200° | ||
| Axis 5 bend | -135°/+135° | ||
| Axis 6 turn | -360°/+360° | ||
| Rotation rate | Axis 1 rotation | 380°/s | |
| Axis 2 arm | 320°/s | ||
| Axis 3 arm | 390°/s | ||
| Axis 4 wrist | 490°/s | ||
| Axis 5 bend | 565°/s | ||
| Axis 6 turn | 815°/s | ||
| Controllers | inCube20 | ||

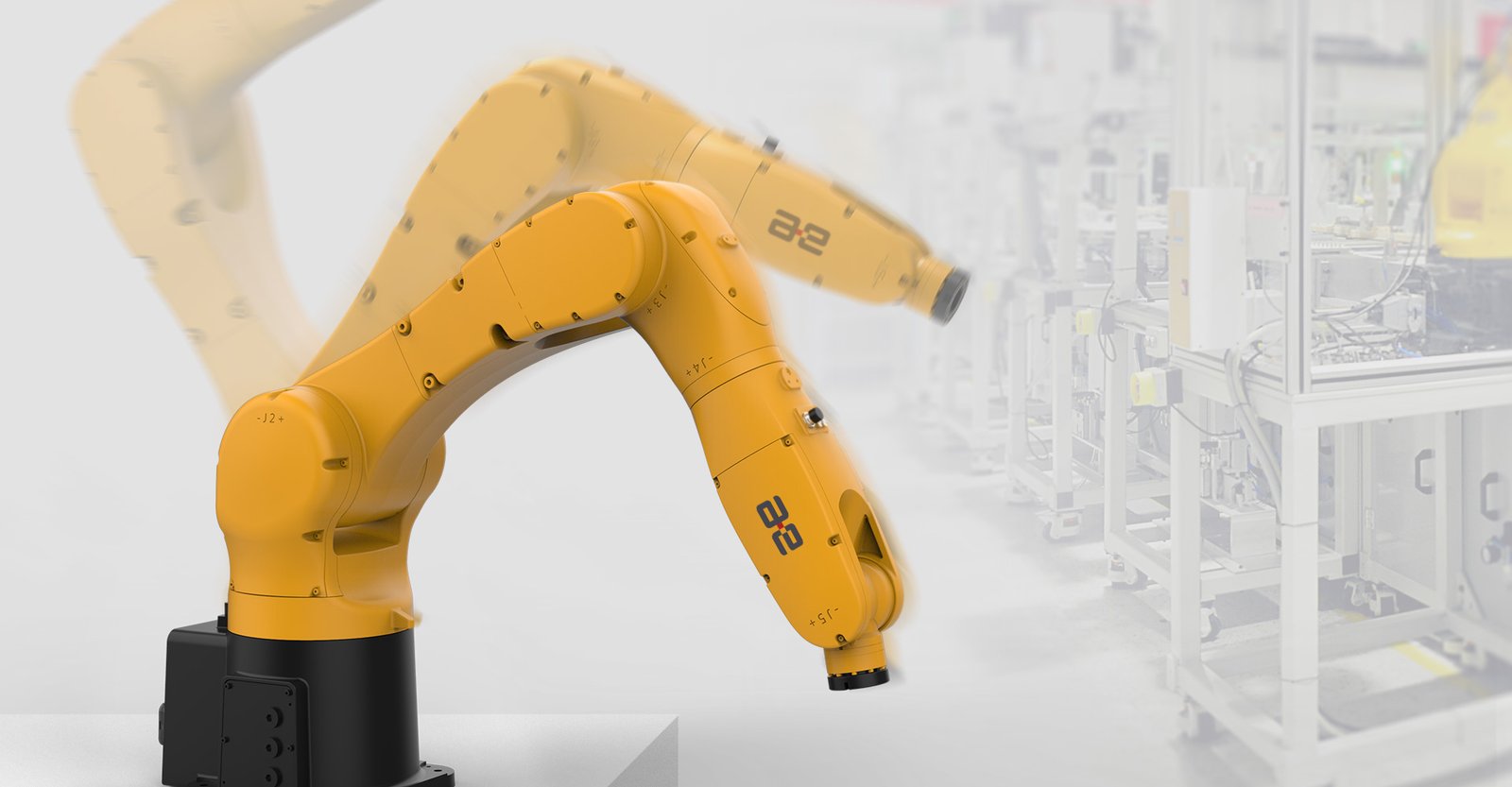

Six-axis industrial robot with a payload of 7kg.

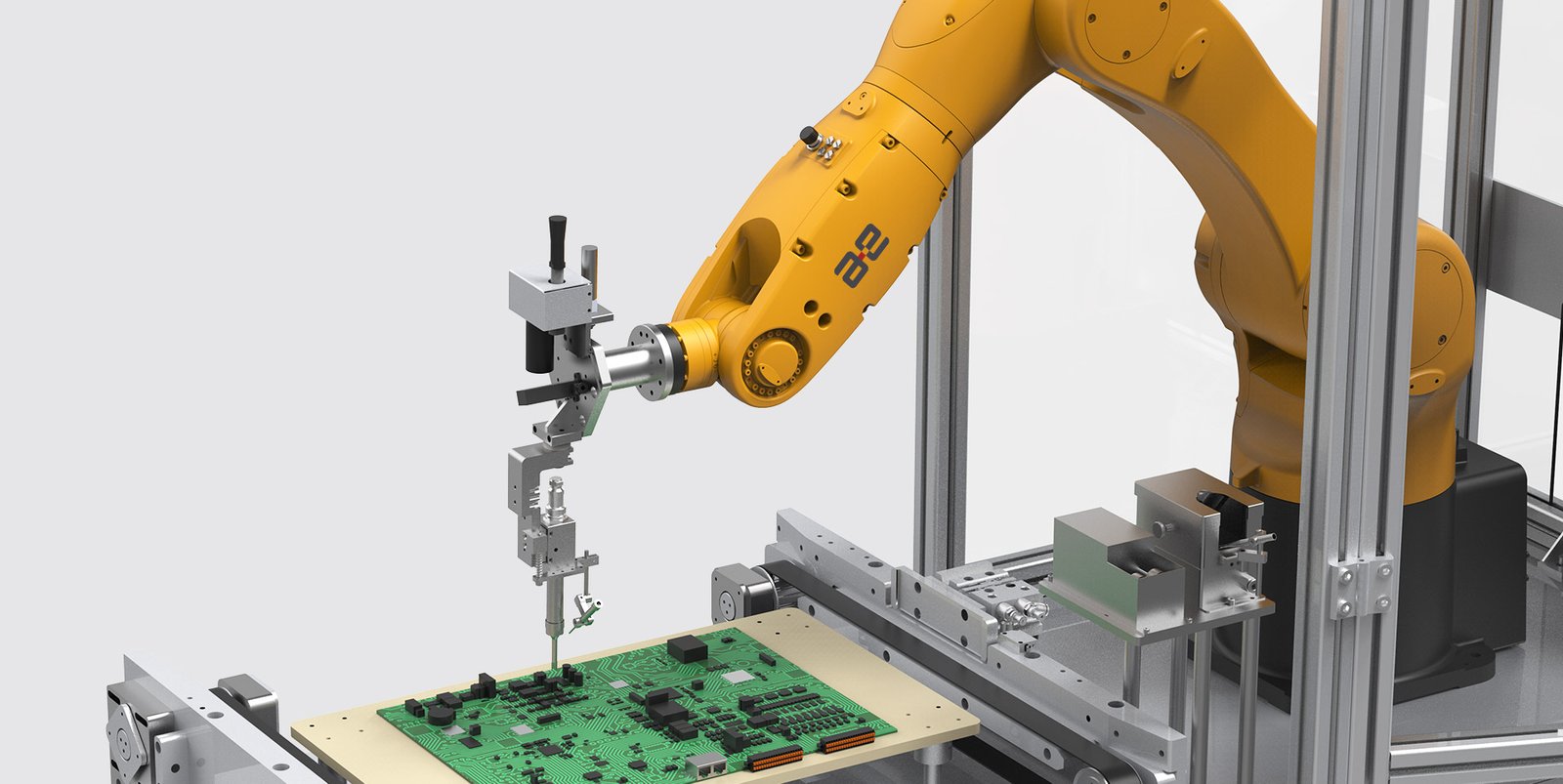

Expert in multi-station operation in 3C field.
Level of Protection: IP67.
Able to keep high performance under harsh environment full of dust or water.
Equipped with the latest speed optimization algorithms.
Flexible and fast operation.

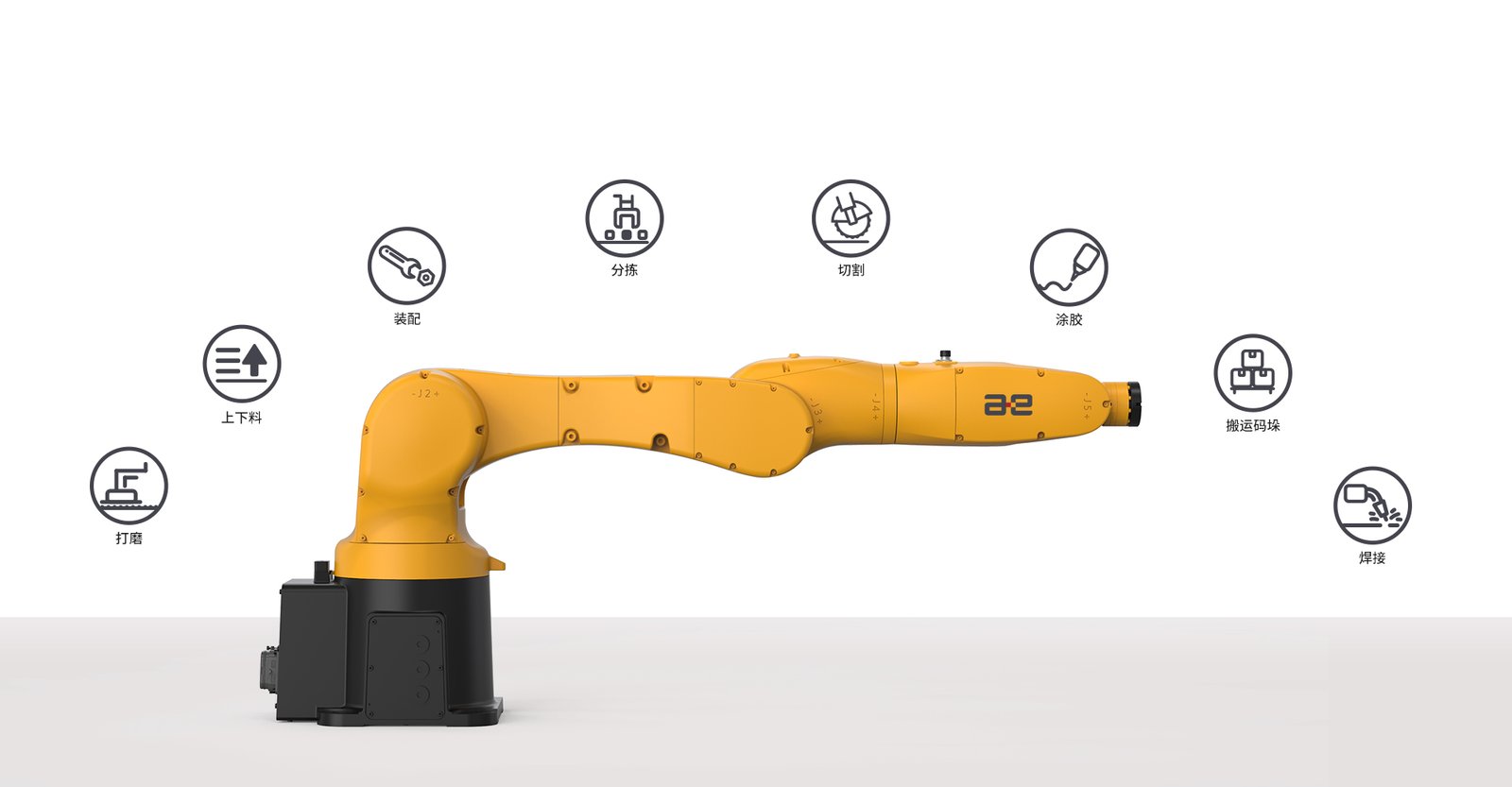

Covering multiple application scenarios.
