| Type | AIR10-1210 | ||
| Axes | 6 | ||
| Payload | 10kg | ||
| Manipulator | Reach | 1211mm | |
| Positioning accuracy | Position repeatability | ±0.0035mm | |
| Ingress Protection | IP67/ISO 5 | ||
| Mounting | Floor/Wall/Ceiling | ||
| Working range | Axis 1 rotation | -170°/+170° | |
| Axis 2 arm | -100°/+135° | ||
| Axis 3 arm | -120°/+156° | ||
| Axis 4 wrist | -200°/+200° | ||
| Axis 5 bend | -135°/+135° | ||
| Axis 6 turn | -360°/+360° | ||
| Rotation rate | Axis 1 rotation | 310°/s | |
| Axis 2 arm | 320°/s | ||
| Axis 3 arm | 350°/s | ||
| Axis 4 wrist | 490°/s | ||
| Axis 5 bend | 565°/s | ||
| Axis 6 turn | 815°/s | ||
| Controllers | inCube20 | ||
High precision
lightweight 10kg payload robot
Position repeatability: ±0.035mm
High speed
Outstanding rotation rate
Standard cycle time: 0.44s
High stability
Hidden and separated design,
avoiding interference with external
devices brought by the arm connector.

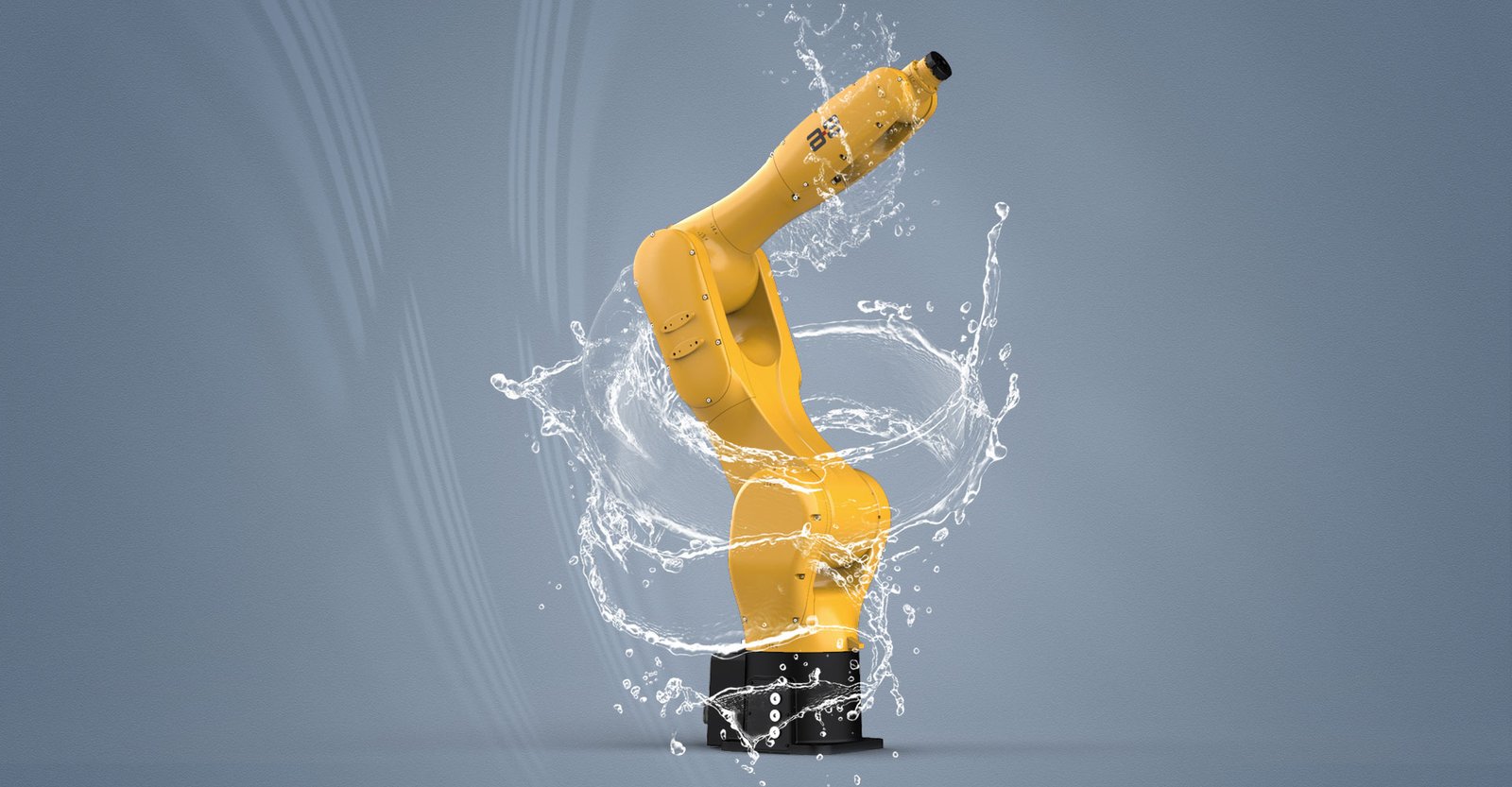

High level of protection: IP67
