| Type | AIR10-1720 | |
| Axes | 6 | |
| Payload | 10kg | |
| Manipulator | Reach | 1721mm |
| Positioning accuracy | Position repeatability | ± 0.04mm |
| Ingress Protection | IP54 ( Wrist：IP67 ) | |
| Mounting | Floor/Wall/Ceiling | |
| Working range | Axis 1 rotation | -170°/+170° |
| Axis 2 arm | -85°/+150° | |
| Axis 3 arm | -95°/+170° | |
| Axis 4 wrist | -195°/+195° | |
| Axis 5 bend | -135°/+135° | |
| Axis 6 turn | -360°/+360° | |
| Rotation rate | Axis 1 rotation | 200°/s |
| Axis 2 arm | 200°/s | |
| Axis 3 arm | 200°/s | |
| Axis 4 wrist | 370°/s | |
| Axis 5 bend | 370°/s | |
| Axis 6 turn | 600°/s | |
| Controllers | inCube20 | |
Fast,accurate and lightweight robot with a payload of 10kg.
High stability
Hidden and separated design, avoiding interference with external devices brought by the arm connector.
Level of Protection:IP67
Outstanding rotation speed
Position repeatability:±0.04mm

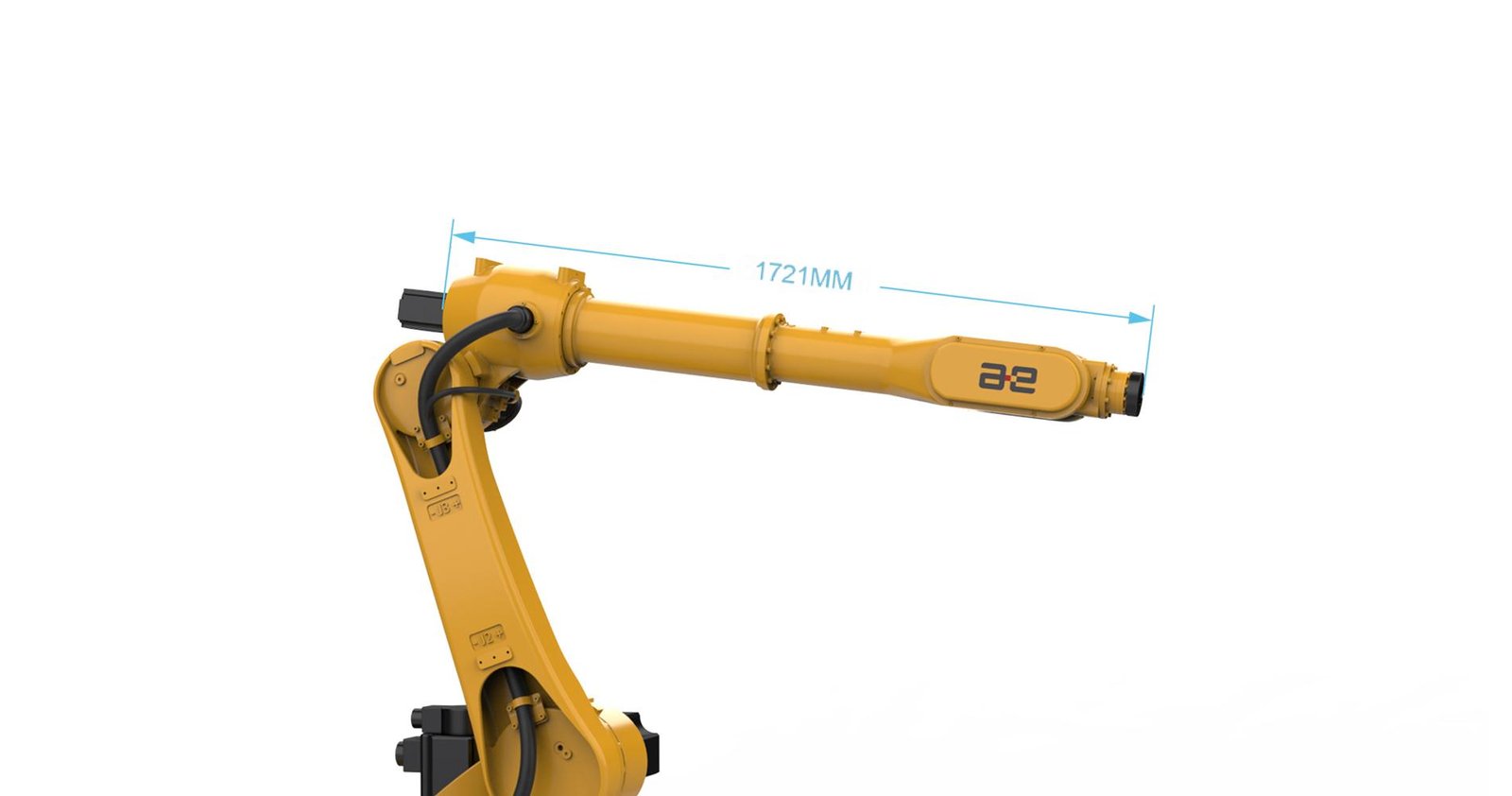

Longer forearms(1721mm), Wider range of rotation.
