| Type | AIR12-1420 | |
| Axes | 6 | |
| Payload | 12kg | |
| Manipulator | Reach | 1420mm |
| Positioning accuracy | Position repeatability | ± 0.03mm |
| Ingress Protection | IP54 ( Wrist：IP67 ) | |

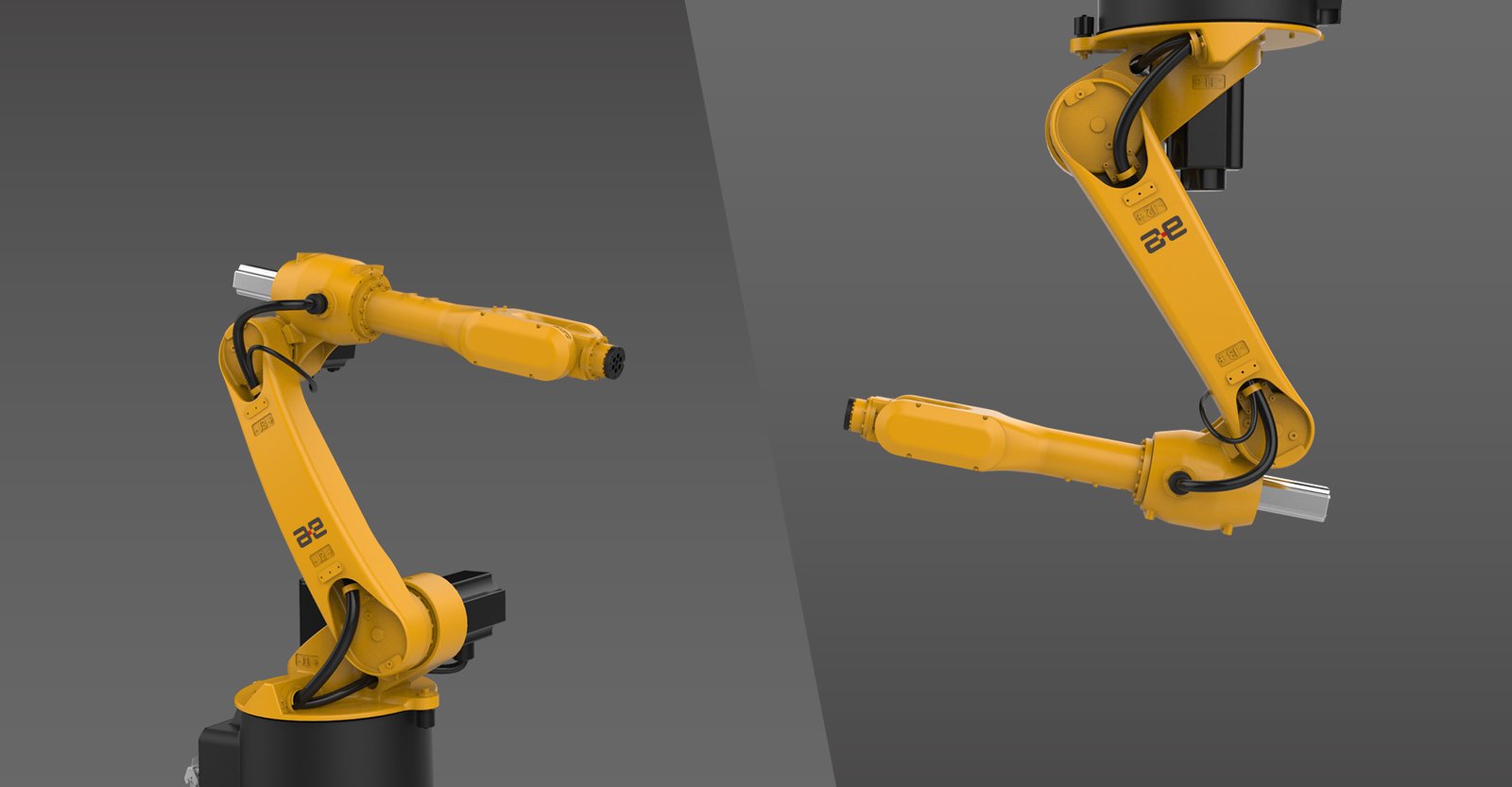

| Mounting | Floor/Wall/Ceiling | |
| Working range | Axis 1 rotation | -170°/+170° |
| Axis 2 arm | -85°/+150° | |
| Axis 3 arm | -95°/+170° | |
| Axis 4 wrist | -195°/+195° | |
| Axis 5 bend | -135°/+135° | |
| Axis 6 turn | -360°/+360° | |
| Rotation rate | Axis 1 rotation | 220°/s |
| Axis 2 arm | 230°/s | |
| Axis 3 arm | 260°/s | |
| Axis 4 wrist | 440°/s | |
| Axis 5 bend | 440°/s | |
| Axis 6 turn | 700°/s | |
| Controllers | inCube20/ARC5-12 | |
12kg lightweight payload robot
Outstanding rotation rate,Position Repeatability:±0.03mm, Compact mechanical design.

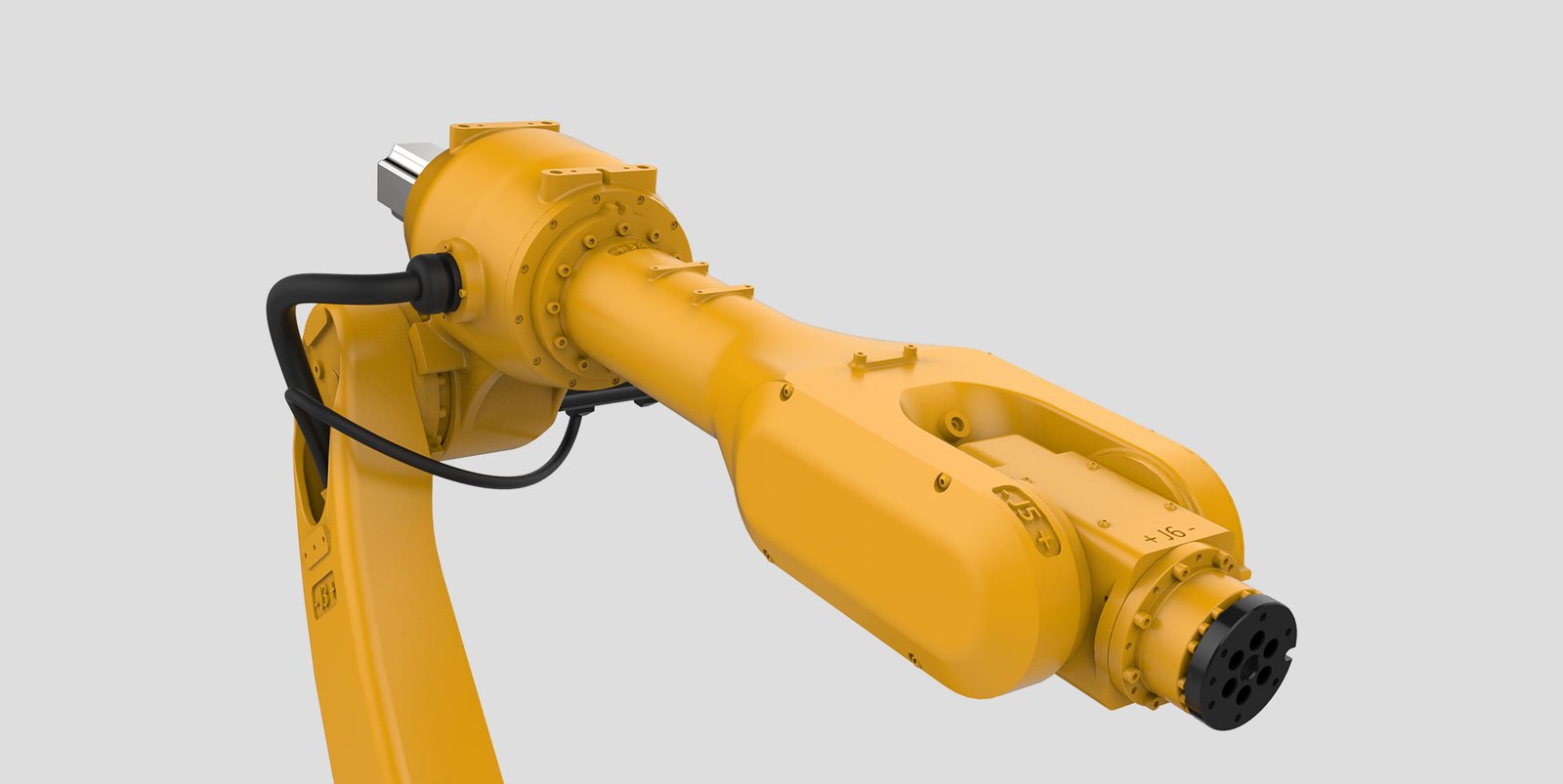

Advanced hollow arm and internal wiring design.
The optimized overall design greatly reduces the component wear rate.
Level of Protection:IP67

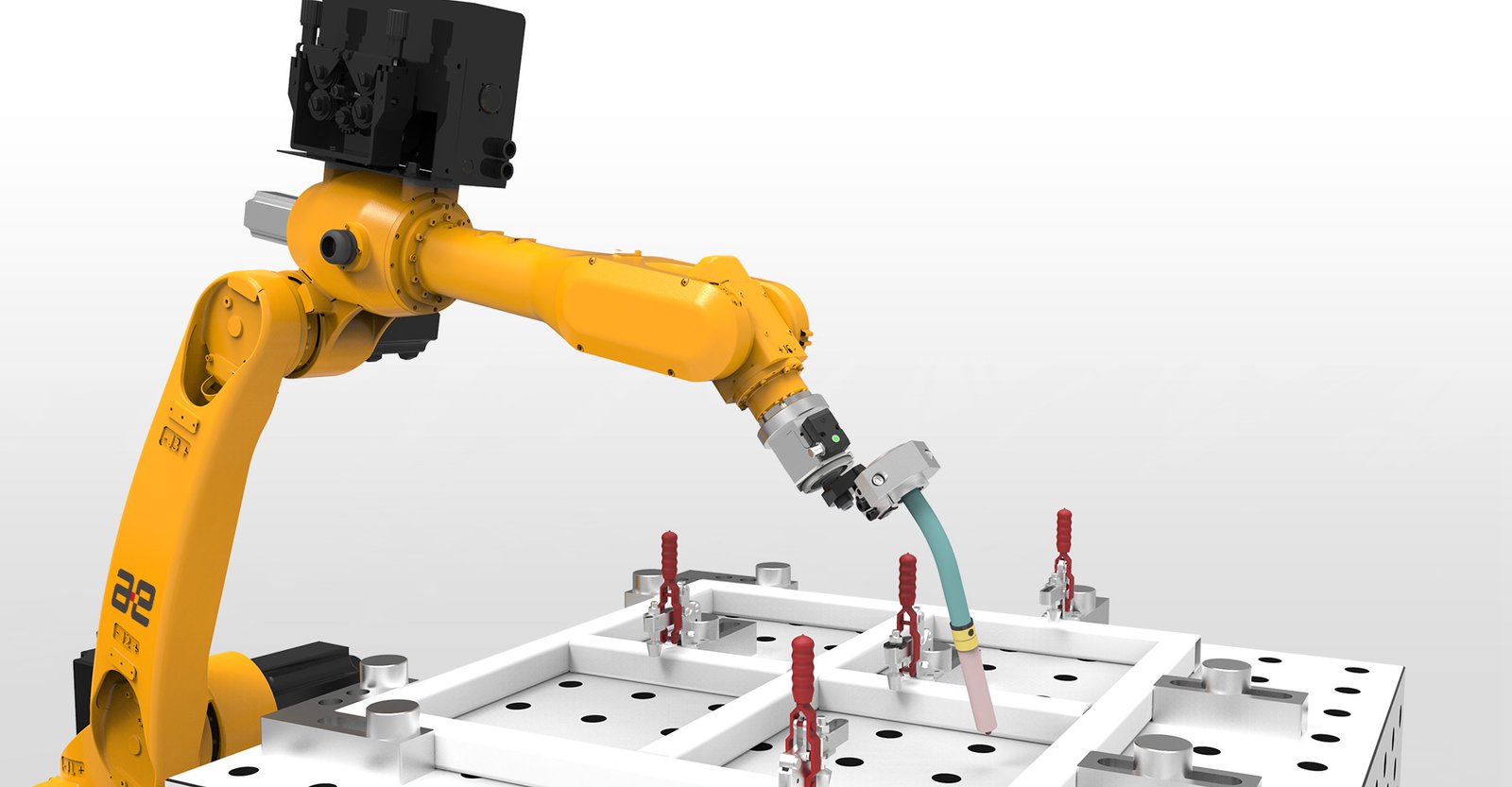

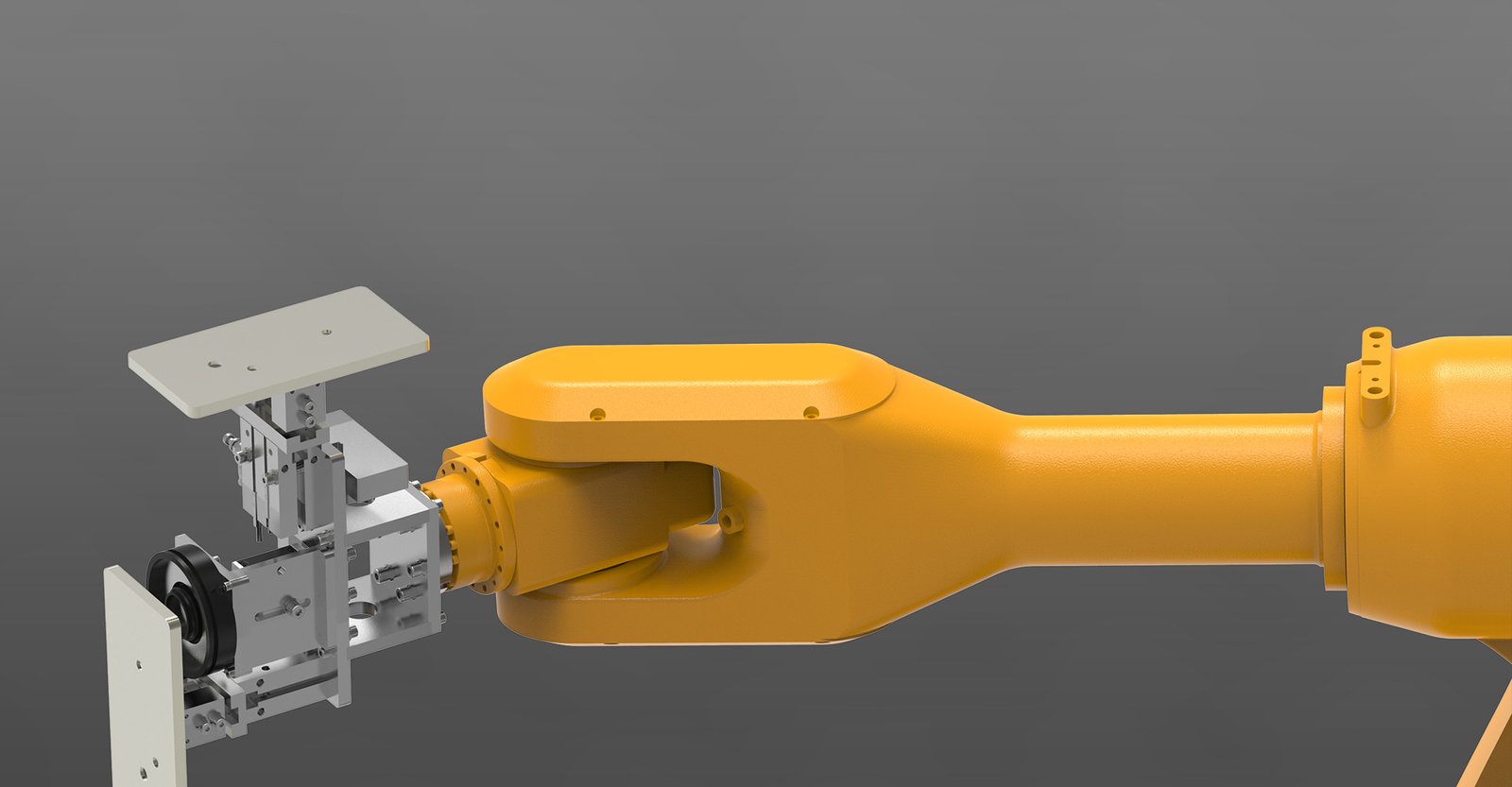

Mainly applied to loading & unloading, grinding & polishing,welding,
handling and palletizing in harsh environment.
Convenient & reliable installation and maintenance.
Extended service life and rapid replacement of spare parts.
