| Type | inCube20 |
| Dimension ( Width×Height×Depth ) | 420×151×455(mm) |
| Weight | 20kg |
| Protection | IP40 |
| Temperature range | 0~45°C |
| Power supply | Single-phase 220VAC -10%~+10%49~ 61Hz |
| Max. input power | 2.2KVA |
| Amount of IO | 26 User DI（PNP&NPN）, 26 User DO（NPN） 18 Safety IO |
Smaller and more compact

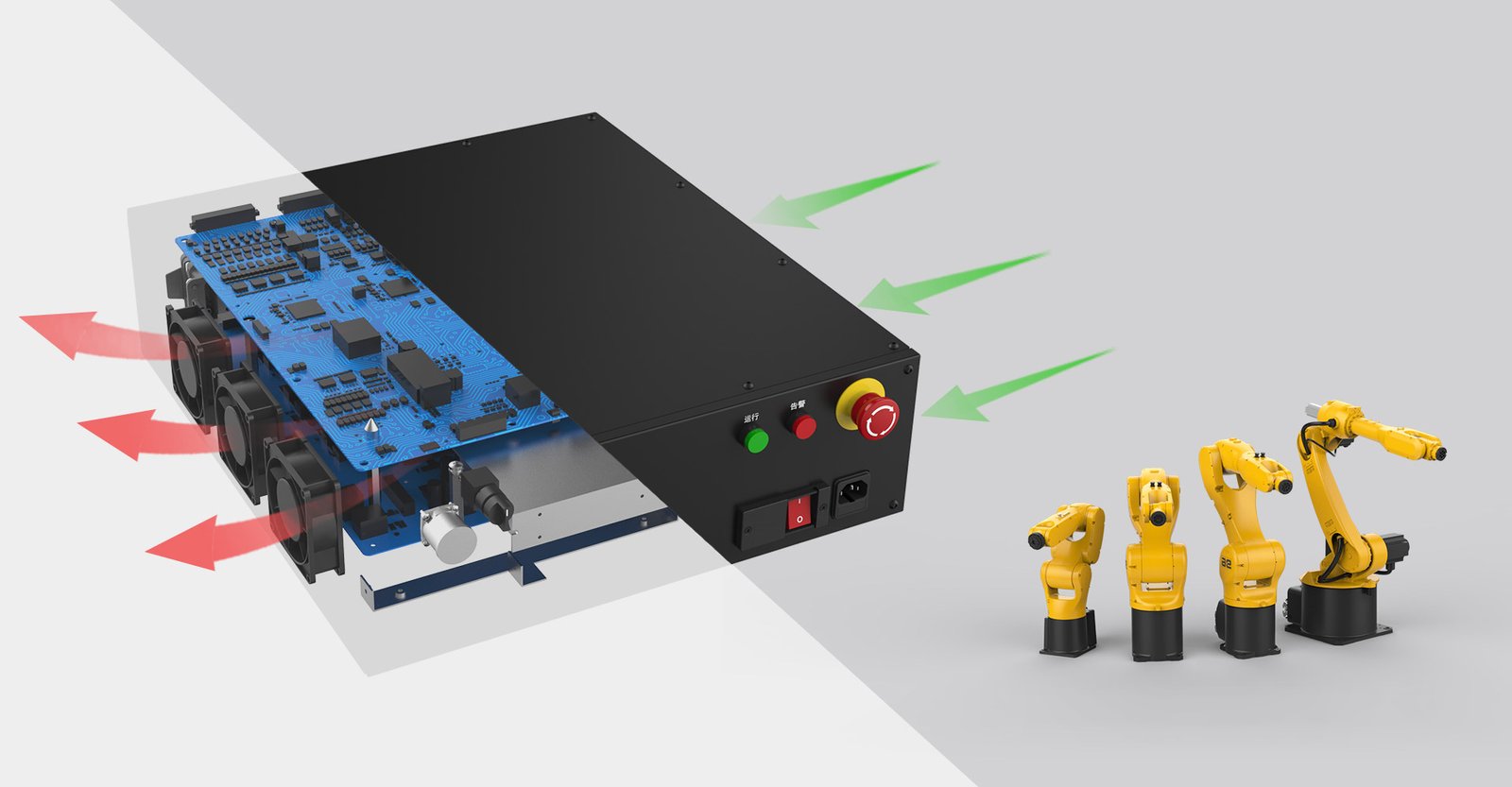

Higher power density and more efficient cooling solution

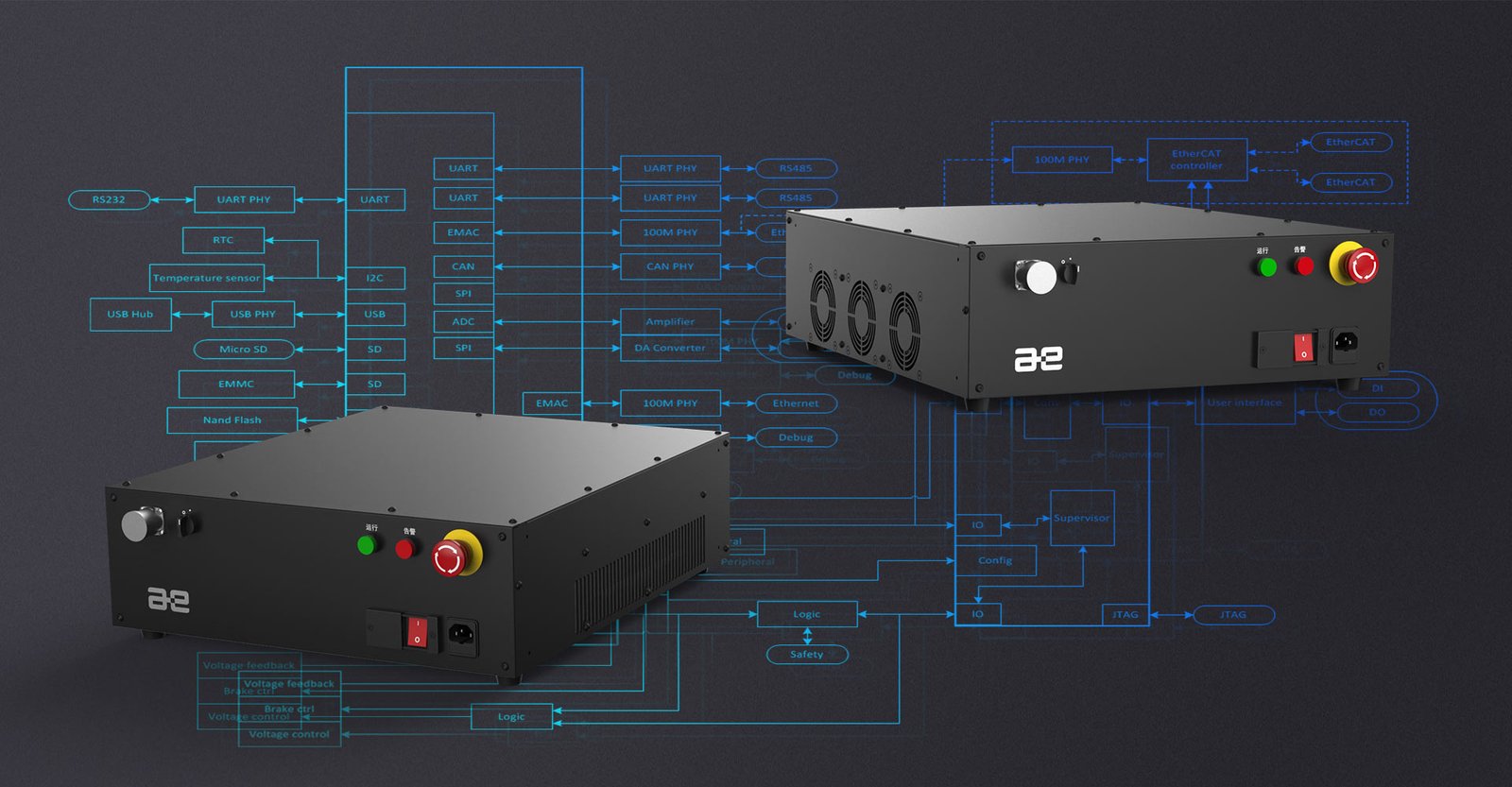

Equipped with self-developed embedded platform
High stability and high real-time performance.
The bus is developed with high university and stability

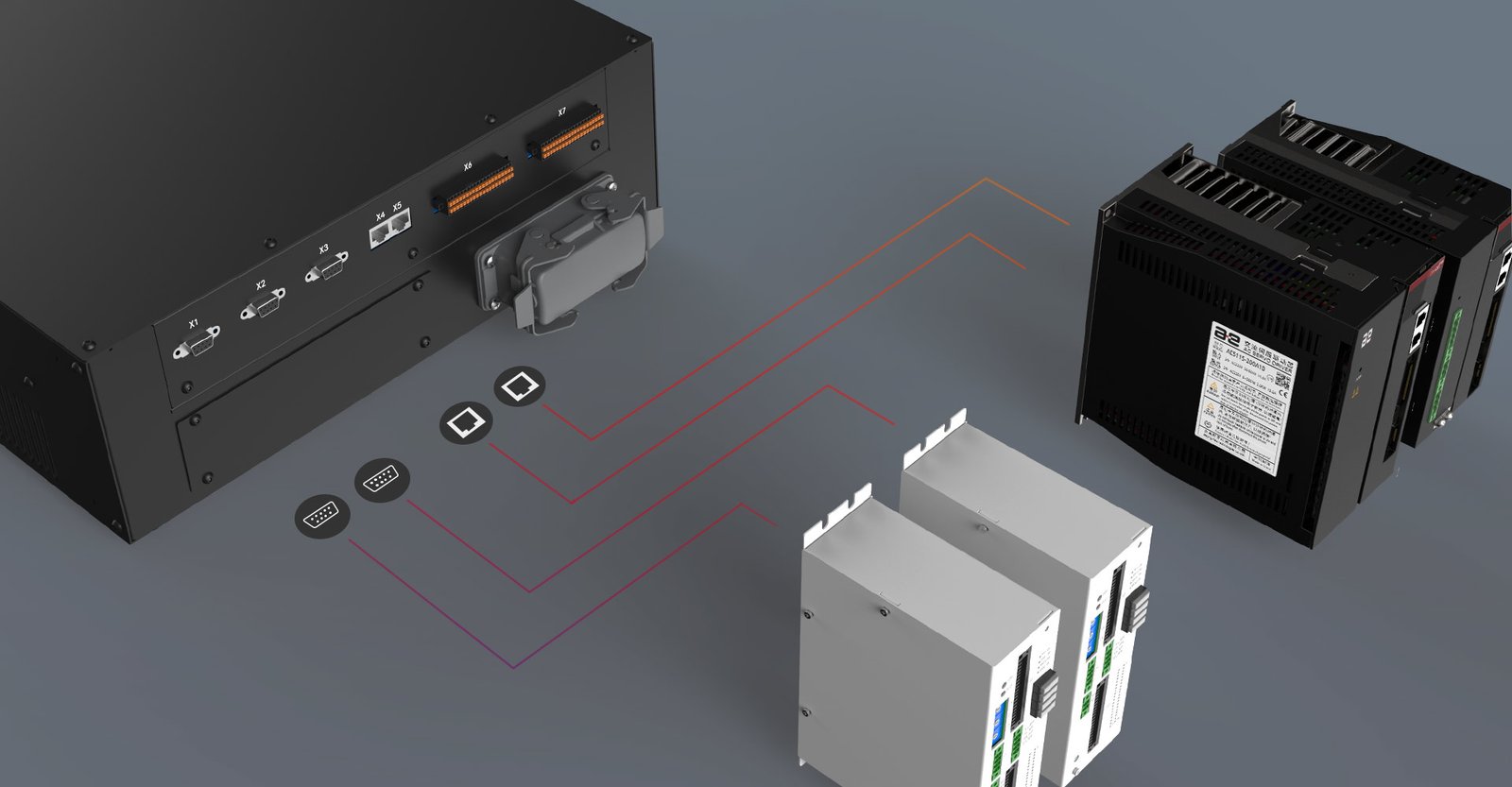

The external IO module adopts the Modbus-AE bus，and the external driver adopts the Ethercat bus.
