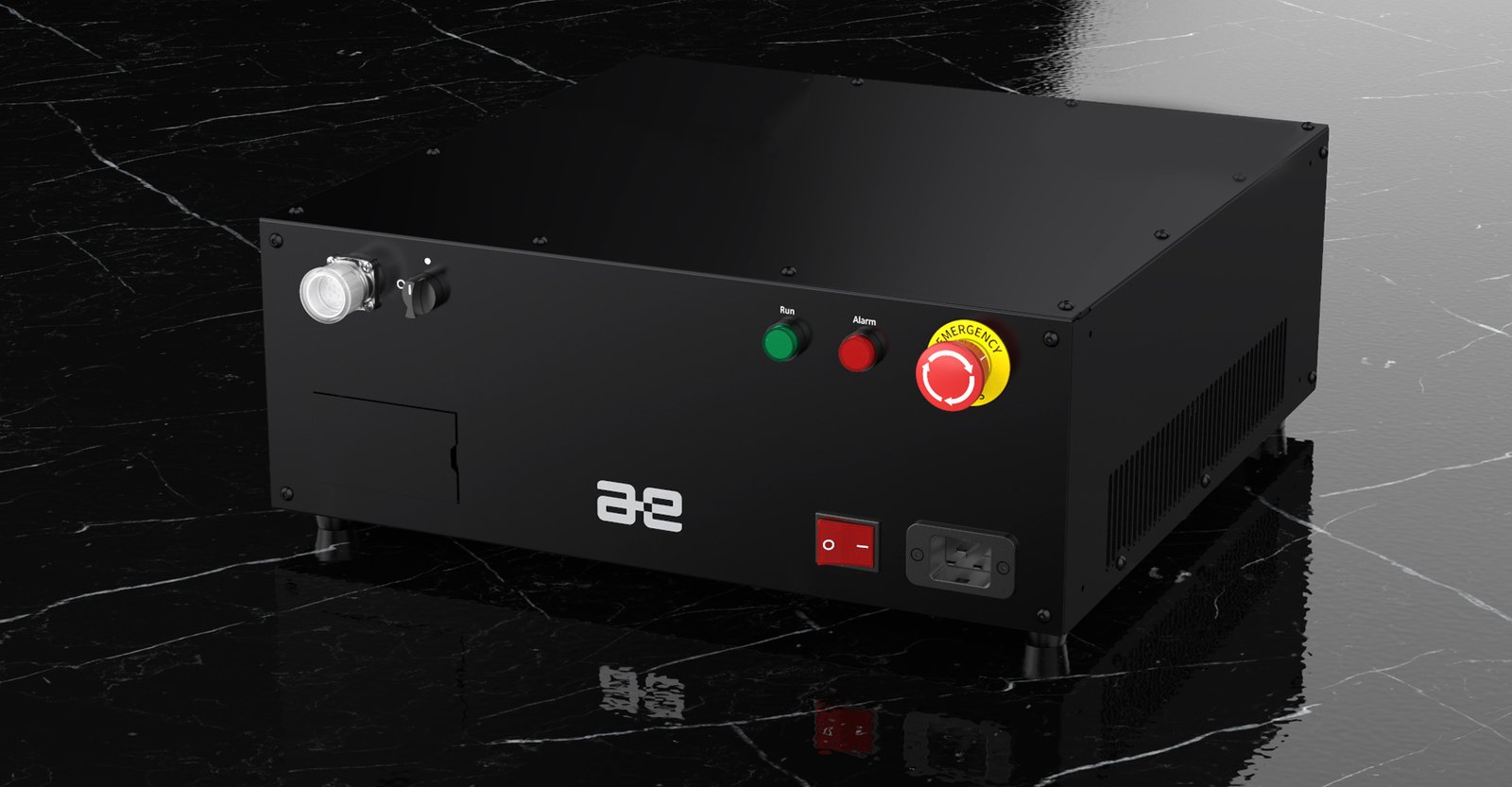

inCube22
| Type | inCube22 |

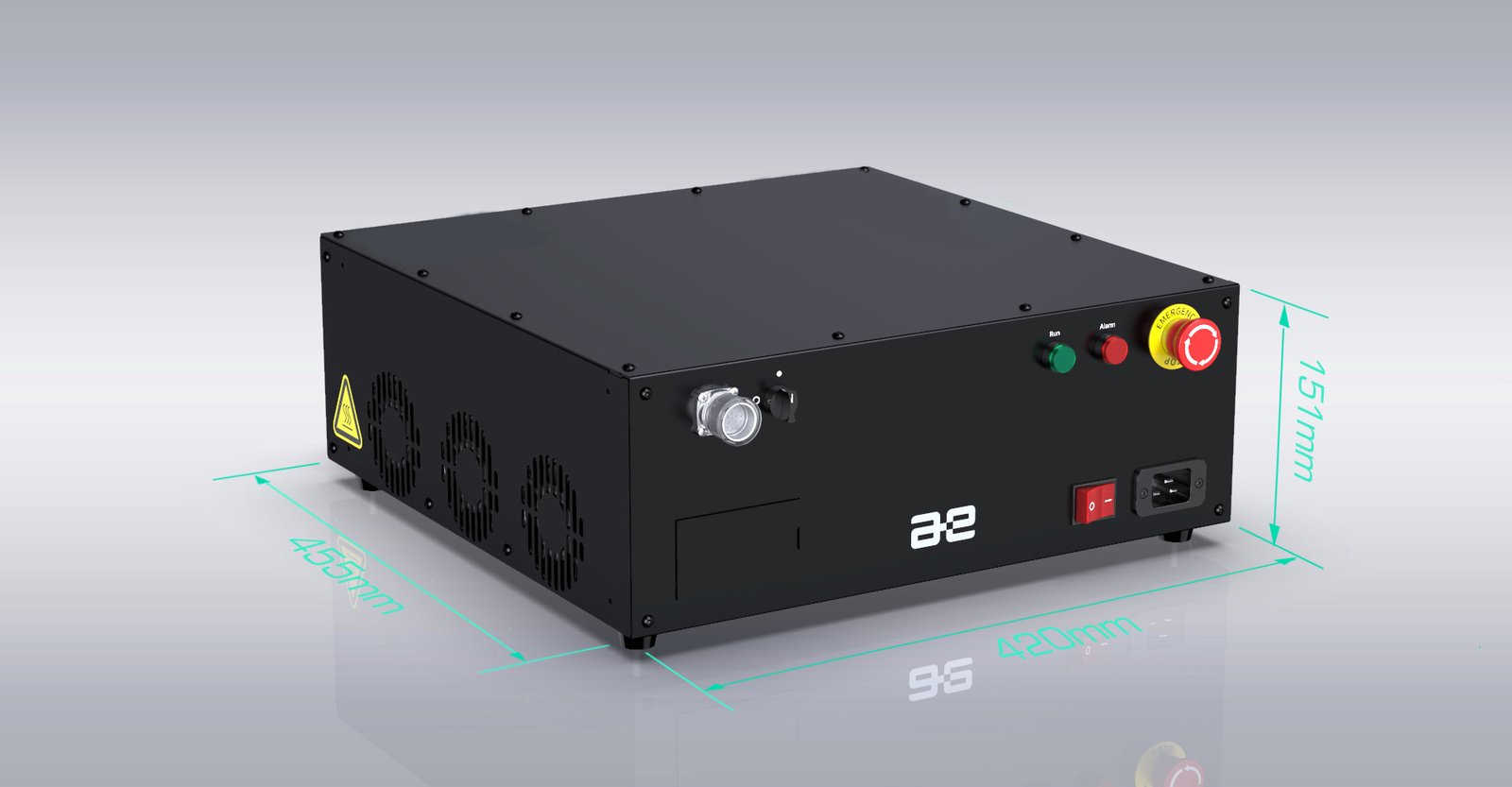

| Dimension ( Width×Height×Depth ) | 420×151×455(mm) |
| Weight | 20kg |
| Protection | IP40 |
| Temperature range | 0~45°C |
| Power supply | Single-phase 220VAC -10%~+10%49~ 61Hz |
| Max. input power | 3.5KVA |

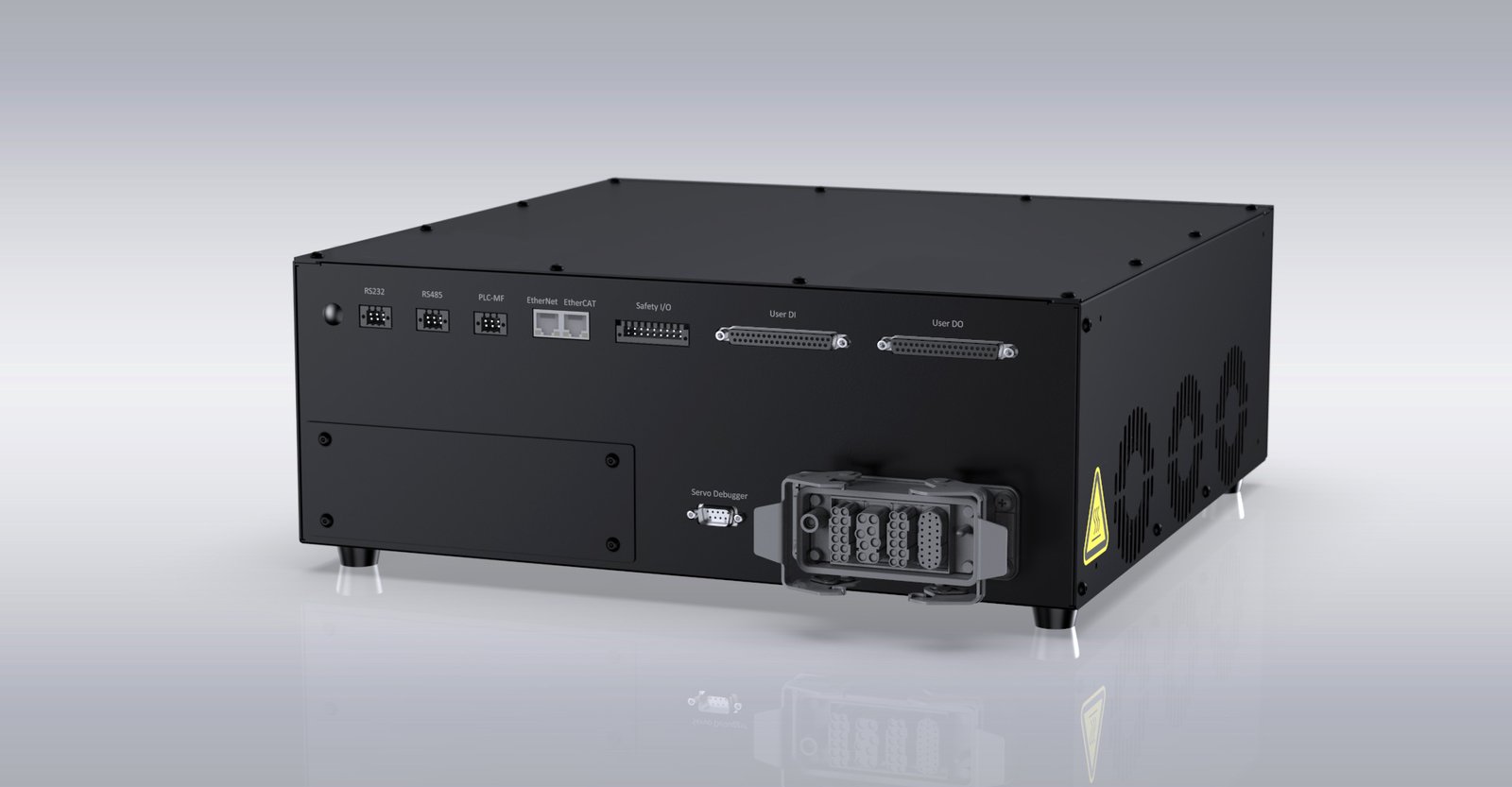

| Amount of IO | 26 User DI（PNP&NPN）, 26 User DO（NPN） 18 Safety IO |
Smaller size
Compared with the previous generation of control cabinets, the volume is reduced by 42%, more space saving.
Lighter weight
Compared with the previous generation of control cabinet, the weight is reduced by 46%.
The number of user IO interfaces and the the peak output of the operator both increase 40%.
